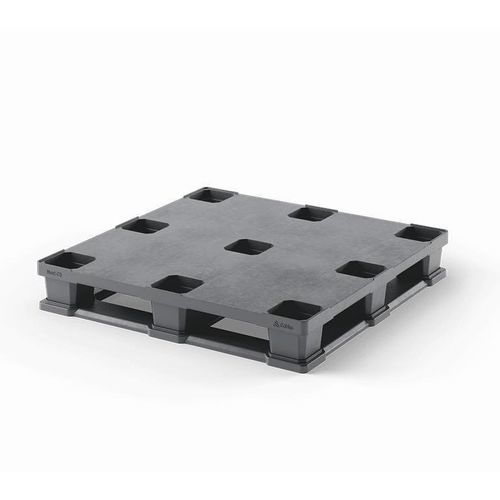

Plastic pallet Nest C5 (CD-6R)

ISOtransportstorage

Nest C5 (CD-6R) is a container plastic pallet engineered for heavy-load handling with a closed upper deck and six runners. The closed deck reduces pressure points and prevents soil contamination, while the pallet is optimized for ISO freight transport and automated conveyor handling.

Key features

• Container pallet with rectangular block reinforcement on a closed upper deck
• Six-run bottom support for stability and smooth operation on roller or chain conveyors
• Designed for 4-way forklift and pallet truck entry
• Optimized for ISO freight transport and block stacking stability
• Made from PP mix (recycled plastic); reusable and 100% recyclable
• Safety rim: 8.5 mm

Available versions

• Nest C5 (CD-6R)
• Nest C5 (OD-9F)
• Nest C5 (OD-3R)
• Nest C5 (OD-6R)
• Nest C5 (CD-9F)
• Nest C5 (CD-3R)

Technical specifications

• Product name: Nest C5 (CD-6R)
• Model / denomination: Nest C5 (CD-6R)
• Fork entry: 4-way
• Nesting height: - mm (not specified)
• Safety rim: 8.5 mm
• Bottom support: 6 run
• Upper deck: closed
• Dimensions (mm): 1100 x 1100 x 163
• Material: PP mix (recycled plastic)
• Weight (PP MIX): 19.0 Kg
• Load capacity (STATIC): 4000 Kg
• Load capacity (DYNAMIC): 1500 Kg
• Racking capacity: 300 Kg
• Logistics (example EU truck): stack 14 — total 336 (see datasheet for detailed truck/container logistics)

Logistics & handling

• Compatible with roller and chain conveyors and automated lines
• Optimized footprint for ISO container loading and palletized freight
• Suitable for block stacking and automated warehouse handling
