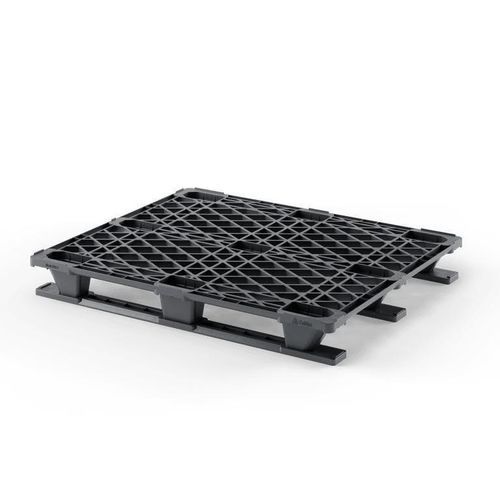

Plastic pallet Nest US1.1 (OD-3R)

transporthandlinglightweight

Overview
An exceptionally lightweight export plastic pallet specifically engineered for one-way shipping and air cargo applications. Designed for easy handling and efficient nesting/staking with its three runners. Manufactured from recycled plastic and fully recyclable.

Versions available

• OD-3R — bottom support: 3-run; upper deck: open; dimensions: 1219 x 1016 x 142 mm; weight (PE): 7.0 kg; PP mix: 7.5 kg; static load: 3000 kg; dynamic load: 1250 kg.
• OD-9F — bottom support: 9 feet; upper deck: open; dimensions: 1219 x 1016 x 132 mm; weight (PE): 5.0 kg; PP mix: 5.5 kg; static load: 1600 kg; dynamic load: 1000 kg.
• CD-9F — bottom support: 9 feet; upper deck: closed; dimensions: 1219 x 1016 x 132 mm; weight (PE): 6.5 kg; PP mix: 7.5 kg; static load: 1600 kg; dynamic load: 1000 kg.

Features & benefits

• Optimized for export one-way shipments and air freight handling.
• Very low unit weight to help reduce transport costs.
• Three-run base for stable stacking and simplified handling.
• Made from recycled plastic; 100% recyclable at end of life.

Technical specifications

• Product name: Nest US1.1 (OD-3R)
• Model: Nest US1.1
• Brand: Nest
• Entry: 4-way
• Bottom support: 3-run
• Upper deck: open
• Dimensions (mm): 1219 x 1016 x 142
• Static load capacity: 3000 kg
• Dynamic load capacity: 1250 kg
• Racking: - (not applicable)
• Weight (PE): 7.0 kg
• PP mix: 7.5 kg
• Safety rim: 5 mm
• Nesting height: not specified
• Material: recycled plastic (100% recyclable)
