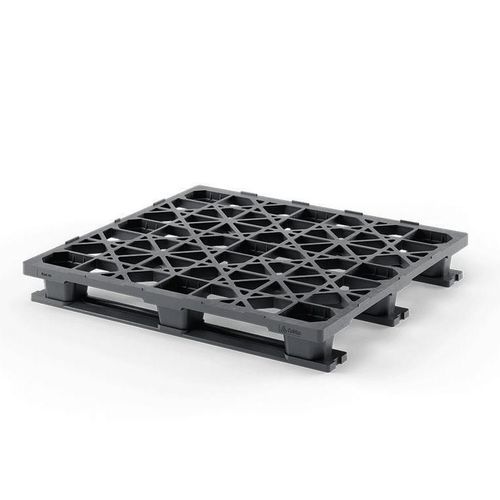

Plastic pallet Nest A5 (OD-3R)

transportstoragehandling

The Nest A5 (OD-3R) is a rackable plastic pallet (1219 x 1143 x 150 mm) designed for the automotive industry. It combines a lightweight, nestable design with handling performance for conveyor systems and efficient block stacking. Manufactured from a recycled polypropylene mix (PP mix), the pallet is reusable and fully recyclable.

Key features

• Rackable pallet with three runners (3‑run bottom support) ensuring smooth operation on roller and chain conveyors.
• Open upper deck for reduced weight, easy inspection and cleaning.
• Space-saving nestable design providing improved storage and transport efficiency compared with wooden pallets; suitable for block stacking.
• Optional safety rim (6 mm) available for better containment when used with boxes or small load carriers.
• Made from recycled PP mix supporting reuse and full recyclability at end of life.

Characteristics / technical specifications

• Product name: Nest A5 (OD-3R)
• Model / commercial denomination: Nest A5 (OD-3R)
• Series / family: Nest
• Entry: 4-way
• Bottom support: 3-run (3 runners)
• Upper deck: open
• Safety rim (optional): 6 mm
• Nesting height: - mm (not specified)
• Dimensions (mm): 1219 x 1143 x 150
• Weight (PP mix): 14.5 kg
• Load capacity (static): 8000 kg
• Load capacity (dynamic): 2000 kg
• Racking capacity: 600 kg
• Material: recycled plastic (PP mix); reusable and fully recyclable
