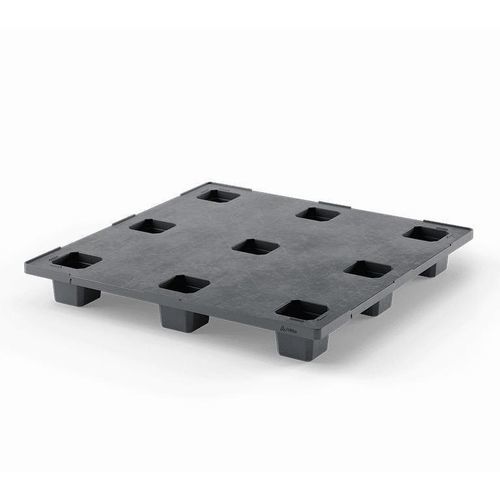

Plastic pallet Nest S5 (CD-9F)

transportstoragehandling

The Nest S5 (CD-9F) is a nestable plastic pallet (1200 x 1200 mm) with nine feet and a large contact area for cargo. It features a closed upper deck to protect against pressure points and contamination, rounded edges for easier handling, and is manufactured from recycled plastic (100% recyclable).

Key features

• Nestable design; accepts up to six 600 x 400 mm modular units per layer
• Closed upper deck for cargo protection from pressure points and contamination
• Rounded edges for safer and easier handling
• Made from recycled plastic (PP mix); 100% recyclable

Available versions

• Nest S5 (CD-9F)
• Nest S5 (OD-9F)
• Nest S5 (OD-3R)
• Nest S5 (OD-6R)
• Nest S5 (CD-3R)
• Nest S5 (CD-6R)

Technical specifications

• Product name: Nest S5 (CD-9F)
• Entry: 4-way entry
• Bottom support: 9 feet
• Upper deck: closed
• Dimensions (mm): 1200 x 1200 x 140
• Static load capacity (kg): 4000
• Dynamic load capacity (kg): 1500
• Racking capacity (kg): 300
• Weight (PP mix) (kg): 14.5
• Safety rim: 8.5 mm
• Nesting height: not specified
• Logistic capacity (examples): Standard EU truck — stack 39 / total 858; Mega truck — stack 45 / total 990; 40'HC container — stack 42 / total 378
