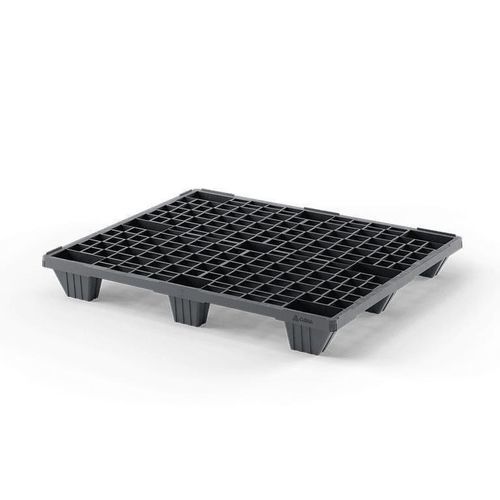

Plastic pallet Nest i1.1 (OD-9F)

transportstoragehandling

Overview

The Nest i1.1 (OD-9F) is an export plastic pallet designed for industrial-size loads and efficient return logistics. It is produced from recycled plastic and is 100% recyclable. The Z-profile upper deck improves load distribution while the nestable 9-foot design enables high compression of empties to reduce transport volume.

Versions

• OD-9F (this page)
• OD-3R (alternative version)

Key features

• Upper deck with Z-profile for excellent loadability and load distribution
• Nestable 9-foot design for high compression of empty pallets
• Lightweight construction reduces transport volume and CO2 emissions
• Made from recycled plastic and 100% recyclable
• Four-way entry, suitable for export and industrial use

Technical specifications

• Product name: Nest i1.1 (OD-9F)
• Entry: 4-way
• Nesting height: - mm (not specified)
• Safety rim: 5 mm
• Bottom support: 9 feet
• Upper deck: open (Z-profile)
• Dimensions (mm): 1200 x 1000 x 140
• Load capacity (kg) — Static: 2000
• Load capacity (kg) — Dynamic: 1200
• Racking: - (not applicable for OD-9F)
• Weight (PE MIX): 5.5 kg
• Logistics — Standard truck (EU) stack: 56 / total: 1456
• Logistics — Mega truck stack: 67 / total: 1742
• Logistics — 40' HC container stack: 58 / total: 1276
