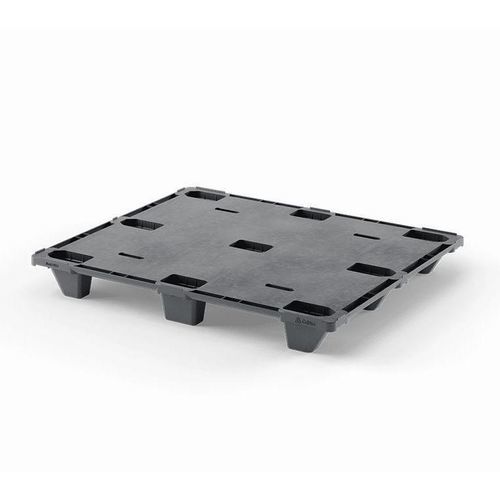

Plastic pallet Nest US1.1 (CD-9F)

transportlightweight4-way entry

Nest US1.1 (CD-9F) is a nestable, extremely lightweight plastic export pallet designed for one-way shipping and air cargo. It features an easy-to-clean closed deck that protects cargo from pressure points and soil contamination. The pallet is manufactured from recycled plastic; reusable and 100% recyclable.

Available versions

• CD-9F (this page)
• OD-9F
• OD-3R

Main characteristics

• Product name: Nest US1.1 (CD-9F)
• Intended use: nestable export pallet for one-way shipping and air cargo
• Upper deck: closed (easy-to-clean closed deck protecting cargo from pressure points and soil contamination)
• Bottom support: 9 feet
• Entry: 4-way
• Safety rim: 5 mm
• Dimensions (mm): 1219 x 1016 x 132
• Load capacity (Kg) - Static: 1600
• Load capacity (Kg) - Dynamic: 1000
• Racking: -
• Weight (Kg) - PE: 6.5
• PP mix: 7.5

Additional technical resources

• Technical data sheet available for CD-9F variant (PDF)

Technical specifications

• Model: Nest US1.1
• Variant: CD-9F
• Dimensions: 1219 x 1016 x 132 mm
• Upper deck type: Closed deck (easy-to-clean)
• Bottom support: 9 feet
• Entry: 4-way
• Nesting height: - mm (not specified)
• Safety rim: 5 mm
• Static load capacity: 1600 Kg
• Dynamic load capacity: 1000 Kg
• Racking capacity: not applicable / -
• Weight (PE): 6.5 Kg
• PP mix: 7.5
• Material / sustainability: made of recycled plastic; reusable and 100% recyclable
