Plastic pallet Nest US5.1 (CD-6R)

polyethylenetransportstorage

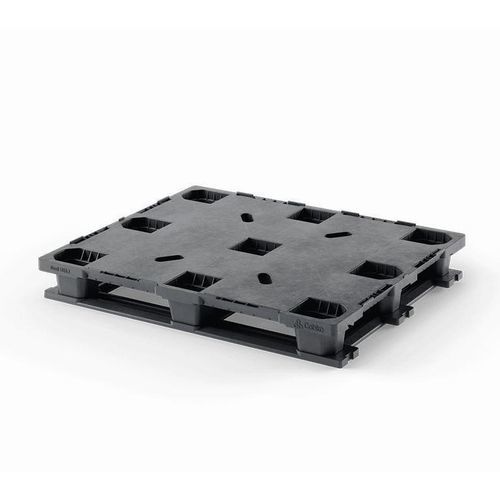

The Nest US5.1 (CD-6R) is a rackable plastic pallet (1219 x 1016 mm) with 6 runners and a closed deck, designed for medium loads and optimized for conveyor handling.

Key features

• Rackable design with 6 runners (6-run) for stable block stacking.
• Closed upper deck protecting goods from pressure points and floor contamination.
• Engineered for smooth run on roller or chain conveyors.
• Lightweight construction for safe and easy handling during transport and logistics operations.
• Manufactured from recycled plastic; fully recyclable.

Applications

• Medium-load handling and transport.
• Block stacking and use on roller or chain conveyor lines.

Characteristics / Technical specifications

• Entry: 4-way fork access
• Nesting height: - mm (not specified)
• Safety rim: 6 mm
• Bottom support: 6run
• Upper deck: closed
• Dimensions (mm): 1219 x 1016 x 150
• Load capacity (Kg) — Static: 3900
• Load capacity (Kg) — Dynamic: 2400
• Load capacity (Kg) — Racking: 300
• Racking value shown: 300 (where applicable)
• Weight (PE): 14.5 Kg
• PP mix: 16.0
• Product name: Nest US5.1 (CD-6R)
• Model / series: Nest US5.1
• Variant reference: CD-6R
• Format: 1219 x 1016 x 150 mm
