Plastic pallet Nest US5.1 (CD-9F)

transportstoragehandling

Overview

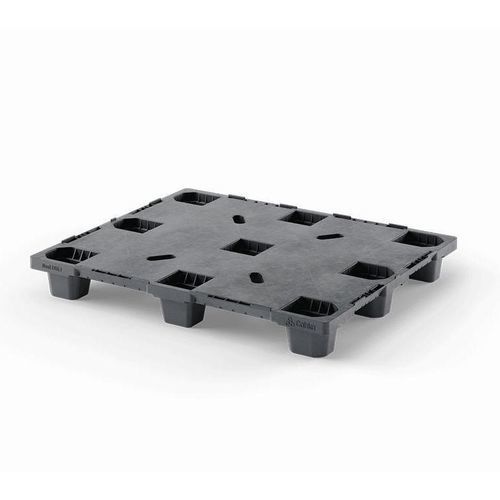

The Nest US5.1 (CD-9F) is a nestable plastic pallet engineered for medium loads to maximise storage density and transport efficiency. It features a low-profile, lightweight structure with a closed upper deck to protect goods from pressure points and ground contamination. The pallet is produced from recycled plastic and is fully recyclable.

Key features

• Optimized nestable design for high nestability ratio and space saving in storage/transport.
• Low profile and light weight for easier manual and mechanised handling.
• Closed upper deck protects cargo from pressure points and contamination.
• 4-way entry for versatile fork and pallet truck access.
• Manufactured from recycled plastic; fully recyclable.

Available variants

• Nest US5.1 (CD-9F)
• Nest US5.1 (OD-9F)
• Nest US5.1 (OD-6R)
• Nest US5.1 (CD-3R)
• Nest US5.1 (CD-6R)

Technical specifications

• Model / series: Nest US5.1 (CD-9F) — variant: CD-9F
• Entry: 4 ways
• Nesting height: - mm (not specified)
• Safety rim: 6 mm
• Bottom support: 9 feet
• Upper deck: closed
• Dimensions (mm): 1219 x 1016 x 140
• Static load capacity: 3000 Kg
• Dynamic load capacity: 1300 Kg
• Racking: -
• Weight (PE): 9.5 Kg
• PP mix: 10.5
• Material: recycled plastic, fully recyclable

Applications

• Warehousing and distribution for medium-weight goods
• Transport and export where space optimisation is required
• Retail logistics and cross-docking operations
• Use with pallet trucks and forklifts in industrial environments

Documentation

• Technical data sheet (TDS) for CD-9F available in PDF on request.
