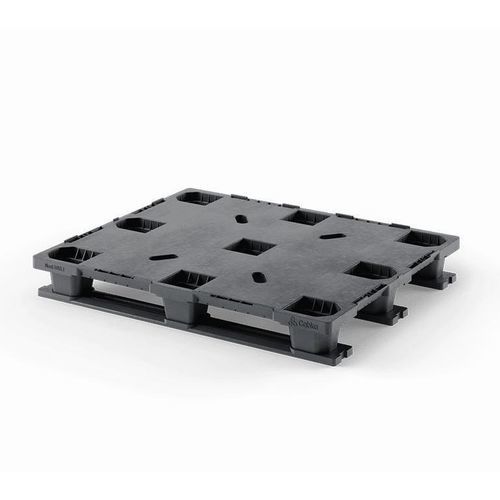

Plastic pallet Nest US5.1 (CD-3R)

polyethylenetransportstorage

The Nest US5.1 (CD-3R) is a rackable plastic pallet designed for medium loads; it is lightweight with a low profile and skids (runners) that ensure smooth running on roller or chain conveyors. The closed upper deck reduces pressure points and protects goods from floor contamination. The pallet is manufactured from recycled plastic and is 100% recyclable.

Key features

• Rackable pallet suitable for medium loads
• Low overall height and lightweight construction
• Skids (runners) designed for smooth run on roller or chain conveyors
• Closed upper deck to protect against pressure points and contamination
• Manufactured from recycled plastic; 100% recyclable

Technical specifications

• Product name: Nest US5.1 (CD-3R)
• Entry: 4 ways
• Bottom support: 3 run
• Upper deck: closed
• Dimensions (mm): 1219 x 1016 x 150
• Nesting height: - mm
• Safety rim: 6 mm
• Load capacity (Kg) — Static: 3400
• Load capacity (Kg) — Dynamic: 2000
• Racking capacity (Kg): 300
• Weight (PE): 13.5 Kg
• PP mix: 14.5
• Material: recycled plastic (100% recyclable)

Model details & recommended uses

• Version on this page: CD-3R (3-run bottom for conveyor handling)
• Recommended for storage, conveyor transport and racking of medium loads
• Suitable for automated lines requiring smooth transfer on rollers or chains
