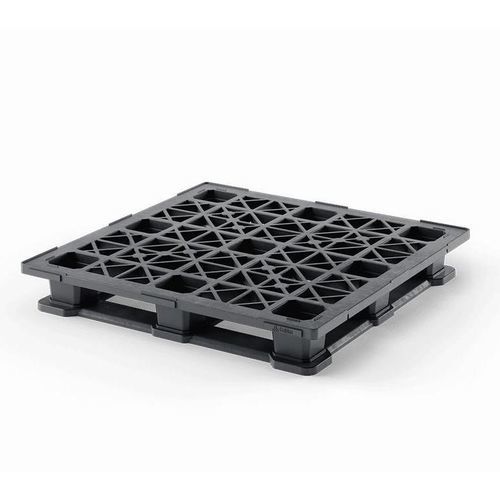

Plastic pallet Nest S5 (OD-6R)

transportstoragehandling

The Nest S5 (OD-6R) is a rackable plastic pallet (1200 x 1200 x 163 mm) with 6 runners and a large contact area designed for medium loads. It is suitable for conveyor systems and block stacking and is manufactured from recycled plastic (100% recyclable).

Key product highlights

• Rackable plastic pallet with 6 runners (OD-6R configuration)
• Large contact area for cargo; fits up to six 600 x 400 mm modules per layer
• Skids ensure smooth run on roller or chain conveyors; suitable for block stacking
• Rounded edges for easier handling and reduced snag points
• Manufactured from recycled polypropylene mix; 100% recyclable

Versions / Related model names

• Nest S5 (OD-6R) — this listing
• Nest S5 (OD-9F)
• Nest S5 (OD-3R)
• Nest S5 (CD-9F)
• Nest S5 (CD-3R)
• Nest S5 (CD-6R)

Technical tables and data (extracted)

• Bottom support: 6run (OD-6R)
• Upper deck: open (OD-6R)
• Dimensions (mm): 1200 x 1200 x 163 (OD-6R)
• Entry: 4 ways
• Nesting height: - mm (not specified)
• Safety rim: 8.5 mm
• Weight (PP MIX): 17.5 Kg
• Load capacity (STATIC): 8000 Kg
• Load capacity (DYNAMIC): 2400 Kg
• Racking: 300 Kg

Characteristics / technical specifications

• Product name: Nest S5 (OD-6R)
• Model / series: Nest S5
• Dimensions: 1200 x 1200 x 163 mm
• Bottom support: 6 runners (6run)
• Upper deck type: open
• Entry: 4-way entry (forklift access)
• Safety rim: 8.5 mm
• Nesting height: not specified (- mm)
• Static load capacity: 8000 Kg
• Dynamic load capacity: 2400 Kg
• Racking capacity: 300 Kg
• Weight (PP MIX): 17.5 Kg
• Material: recycled polypropylene mix; 100% recyclable
