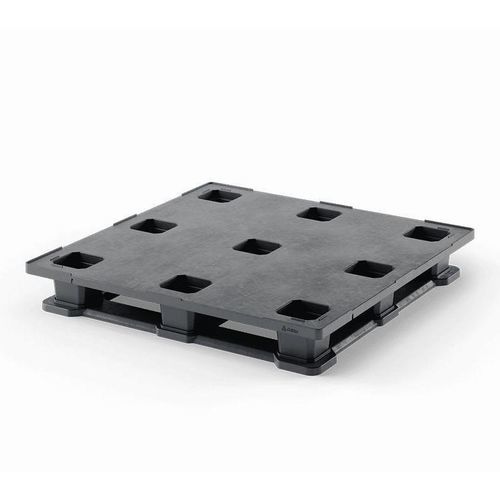

Plastic pallet Nest S5 (CD-6R)

storagetransporthandling

The Nest S5 (CD-6R) is a rackable plastic pallet designed for industrial logistics to optimise storage density and material handling flows. It features a closed upper deck, six runners and compatibility with roller and chain conveyor systems. Manufactured from a recycled PP mix and fully recyclable, it is suitable for block stacking and automated handling lines.

Key features

• Rackable design with six runners (CD-6R) offering a wide contact area for stable block stacking.
• Closed upper deck to reduce pressure points and protect loads from floor contamination.
• Runner configuration enables smooth operation on roller and chain conveyors.
• Rounded edges for easier handling and improved operator safety.
• Capacity to accommodate up to six modular units (600 x 400 mm) per layer.
• Produced from recycled polypropylene mix (PP mix) and fully recyclable.

Technical specifications

• Model: Nest S5 (CD-6R)
• Entry: 4-way
• Nesting height: - mm (not specified)
• Safety rim: 8.5 mm
• Bottom support: 6 runners (6run)
• Upper deck: closed
• Dimensions (mm): 1200 x 1200 x 163
• Static load capacity: 8000 kg
• Dynamic load capacity: 2400 kg
• Racking capacity: 300 kg
• Weight (PP mix): 19.5 kg
• Material: recycled polypropylene mix (PP mix), fully recyclable
