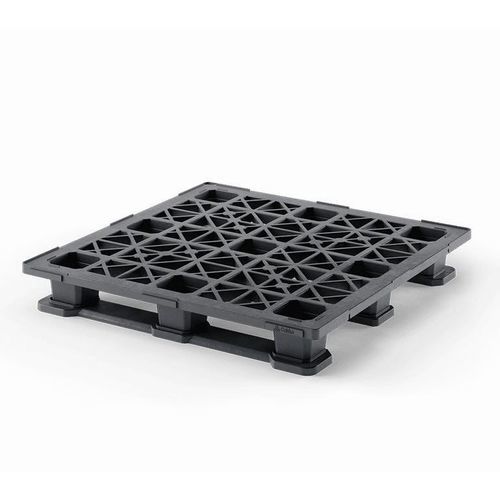

Plastic pallet Nest S5 (OD-3R)

handling4-way entryrecyclable

The Nest S5 (OD-3R) is a rackable plastic pallet sized 1200 x 1200 x 163 mm, designed for industrial logistics and material handling with conveyor compatibility and efficient block stacking.

Key product highlights

• Rackable design with three runners (3-run) providing a large cargo contact area.
• Holds up to six modular units (600 x 400 mm) per layer.
• Three runners ensure smooth operation on roller or chain conveyors and stable block stacking.
• Rounded edges for improved manual and mechanical handling.
• Manufactured from recycled PP mix; 100% recyclable.

Versions

• Nest S5 (OD-3R)
• Nest S5 (OD-9F)
• Nest S5 (OD-6R)
• Nest S5 (CD-9F)
• Nest S5 (CD-3R)
• Nest S5 (CD-6R)

Technical data (specific to Nest S5 OD-3R and family overview)

• Entry: 4 ways
• Nesting height: not specified
• Safety rim: 8.5 mm
• Bottom support (OD-3R): 3 runners
• Upper deck (OD-3R): open
• Dimensions (OD-3R): 1200 x 1200 x 163 mm
• Load capacity (OD-3R) - Static: 6000 kg
• Load capacity (OD-3R) - Dynamic: 1850 kg
• Racking capacity (OD-3R): 300 kg
• Weight (PP mix, OD-3R): 16.0 kg

Characteristics / technical specifications

• Product name: Nest S5 (OD-3R)
• Model / series: Nest S5
• Overall dimensions: 1200 x 1200 x 163 mm
• Material: PP mix (recycled plastic)
• Weight (PP mix): 16.0 kg
• Entry type: 4 ways
• Bottom support: 3 runners (OD-3R)
• Upper deck: open
• Static load capacity: 6000 kg
• Dynamic load capacity: 1850 kg
• Racking capacity: 300 kg
• Safety rim: 8.5 mm
• Nesting height: not specified
