Plastic pallet Nest E5 (OD-3R)

transportstoragehandling

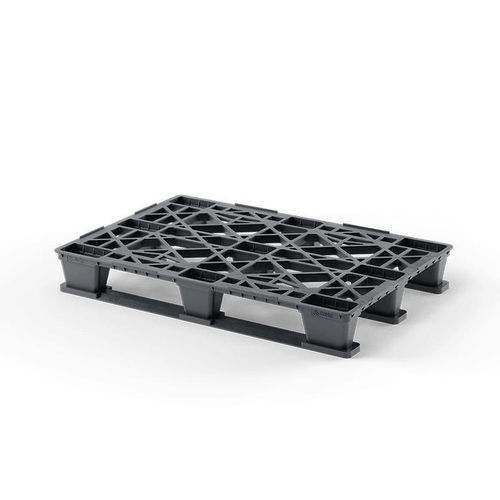

Nest E5 (OD-3R) is a rackable euro-size plastic pallet designed for medium loads. It has a three-runner base and an open upper deck, making it suitable for high-rack storage and conveyor systems. The pallet is produced from recycled plastic and is 100% recyclable.

Versions / key notes

• Available versions: OD-3R (this product) and OD-9F (alternative version).
• OD-3R: 3-runner base, open upper deck, dimensions 1200 x 800 x 150 mm, weight 12.5 kg (PP mix).
• OD-9F: alternative with 9 feet, dimensions 1200 x 800 x 140 mm, weight ~9.0 kg (PP mix).

Characteristics / Specifications

• Product name: Nest E5 (OD-3R).
• Forklift access: 4-way entry.
• Nesting height: - mm (not specified).
• Safety rim: 7 mm.
• Bottom support: 3 runners (3-run).
• Upper deck: open.
• Dimensions (mm): 1200 x 800 x 150.
• Static load capacity: 3400 kg.
• Dynamic load capacity: 1600 kg.
• Racking capacity: 300 kg.
• Weight (PP mix): 12.5 kg.
• Material: recycled plastic, 100% recyclable.

Applications

• High-rack storage systems and warehouses.
• Conveyor lines and automated material handling.
• Logistics and distribution for euro-format loads (1200x800 mm).
