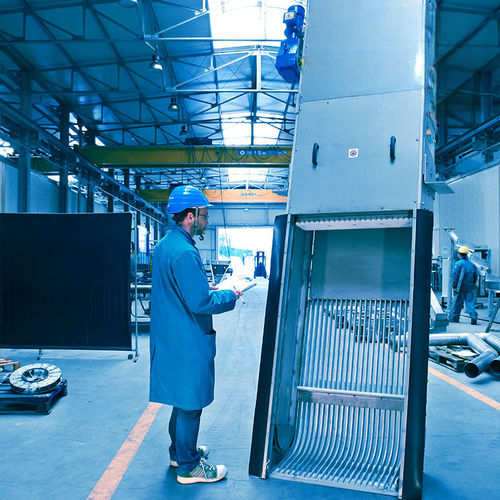

Bar screen GVC

verticalmechanical

Category WATER INTAKE
Typology SCREENS

When to use it
The GVC-type vertical chain screen by SERECO is suitable for a wide range of screening requirements in terms of channel dimensions, flow rates and filtration openings. GVC is SERECO's best-selling screen and has been refined over time to improve functionality, lifespan, energy consumption and quality.

How it is made and how it works
This screen features a cold-bent steel sheet frame supporting guides for special roller-type chains. Drive sprockets are mounted only at the top of the unit; at the bottom the chain runs over fixed return elements to avoid submerged moving parts, increasing reliability and durability. One or more rakes mounted on the double chain remove material retained on the bars. A comb-cleaning device with an oscillating motion cleans the rake and facilitates discharge into the hopper below. Motion is provided by a robust gearmotor; overload protection is provided by standard dynamometric devices or optional electronic current limiters.

Strengths

• No moving mechanical parts immersed in water
• Robust, simple design
• Low and straightforward maintenance
• Adaptable to a wide range of screening needs

Specifications / technical data

• Frame: cold-bent steel sheet
• Guides: for special roller-type chains
• Drive: sprockets fixed at the top only; lower chain routed on fixed returns
• Cleaning: one or more rakes on a double chain to recover screened material
• Rake cleaning: comb-cleaning device with oscillating movement to improve discharge into hopper
• Drive: robust gearmotor
• Overload protection: standard dynamometric devices or electronic current limiters (on request)
• Designed to avoid submerged moving mechanical parts for increased reliability and service life
• Adaptable to various channel dimensions, flow rates and filtration openings
