Belt screen GNAFO2

coarse screeningscrewcounter current

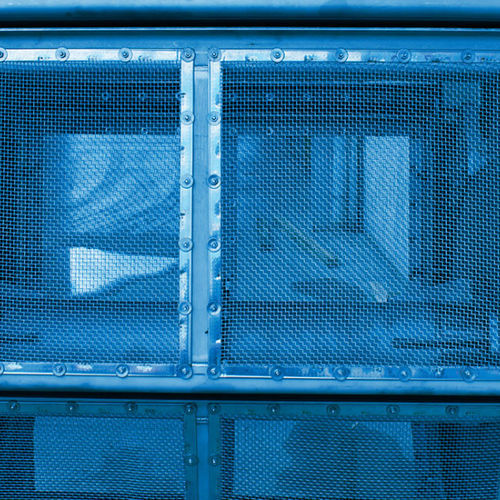

Product overview The GNAFO2 is a central flow belt screen equipped with metal mesh filter panels for screening water in intake channels (sea, lake, river) and for applications with high flow rates. The version with a screened‑material collecting shaftless screw is designed for waters containing coarse suspended solids and for industrial wastewater.

Category / Typology WATER INTAKE / SCREENS

When to use it Use the GNAFO2 for primary screening of intake water from sea, lake or river channels and in any situation with significant flow rates to be treated. Choose the shaftless screw version where coarse debris or industrial sewage are present.

How it is made

• Frame in press‑bent steel sheets for structural rigidity
• Filtering belt composed of metal mesh filter panels
• Twin roller chains for belt conveyance
• Upper toothed wheels to advance filter panels via the chains
• Lower toothed wheels for chain return and guidance
• Drive shaft supported on self‑aligning bearings between the wheels
• Heavy‑duty gearmotor for reliable drive
• Complete cleaning system: two washing ramps fitted with spray nozzles for counter‑current cleaning
• Central draining trough located at the top with an internal shaftless screw for discharge
• Gearmotor dedicated to shaftless screw rotation

How it works Water enters the machine center and passes from inside to outside through the two opposite filtering sides, creating two filtered streams that rejoin downstream. The belt remains stationary under normal conditions and the filter panels rotate only when the upstream/downstream level difference exceeds a preset threshold. Particles larger than the filtration opening accumulate on the panels; the belt lifts them to the discharge height where a counter‑current washing system using already filtered water removes the screened material. Backwash and solids flow to the central trough where the shaftless screw dewaters and conveys the material out. The simple design and fully automatic cleaning ensure continuous high performance and long service life.

Strengths

• Adaptable to channels from a few metres to several tens of metres depth
• High structural durability with potential service life exceeding 30 years
• Variable filtration capacity to suit flow conditions
• Efficient single‑pass filtration delivering low suspended solids in treated water

Characteristics / Technical specifications

• Model: GNAFO2
• Category: Water intake - Screens
• Filter type: Central flow belt with metal mesh filter panels
• Construction: Press‑bent steel sheet frame
• Conveyance: Belt of filter panels moved by twin roller chains and toothed wheels
• Drive: Heavy‑duty gearmotor with drive shaft on self‑aligning supports
• Cleaning: Two washing ramps with spray nozzles; counter‑current washing using filtered water
• Screened material handling: Central draining trough with internal shaftless screw and screw gearmotor for dewatering and discharge
• Operation: Normally static; panels rotate when level difference reaches preset threshold
• Applications: Sea/lake/river intake channels, high flow rate situations, waters with coarse suspended solids, industrial sewage
• Performance: Single‑pass filtration, variable capacity, designed for long service life
