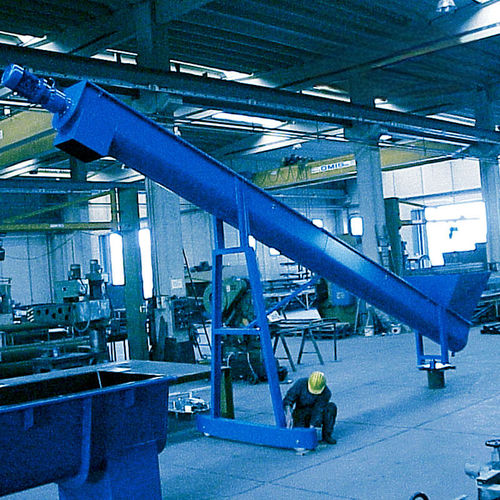

Slurry conveyor TCSA

screwinclinedtubular

Product description
TC screw conveyor is designed for the transportation of sludge and screened material. It consists of a metal-sheet channel fitted at the feed end with a top loading hopper and at the discharge end with an outlet, a tubular shaft on which a screw with constant diameter and pitch is welded, and a driving gear motor. The rotating screw pushes material toward the discharge end. The TCSA type, featuring a central shaftless screw, is also available and is recommended for filamentous or stringy solids. Both models can be installed in horizontal or inclined positions (variants: TCI, TCISA). On request the channel can be closed with steel covers to ensure hygiene and safety. For steep inclinations a version with the screw completely tubed is available. Standard construction is carbon steel with hot-dip galvanization; stainless-steel parts can be supplied on request.

Strengths

• Effective transport capacity even at high heads
• Option for fully closed execution to ensure hygiene and safety
• Very low maintenance requirements
• Robust industrial construction

Category / Typology

• Category: Water intake
• Typology: Conveyors

Technical specifications

• Commercial models: TC and TCSA
• Screw: constant diameter and pitch, welded to shaft (or shaftless for TCSA)
• Shaft: tubular shaft (standard TC); central shaftless screw available (TCSA) for filamentous materials
• Main components: top loading hopper; discharge opening; screw; driving gear motor
• Installation: horizontal or inclined positions (variants: TCI, TCISA)
• Optional executions: closed channel with steel covers for hygiene and safety; conveyor with screw completely tubed for steep inclinations
• Standard materials: carbon steel with hot-dip galvanization
• Optional materials: stainless steel for metallic parts on request
• Primary application: transportation of sludge and screened material
• Low maintenance requirement
