Belt conveyor NT

inclined

Description

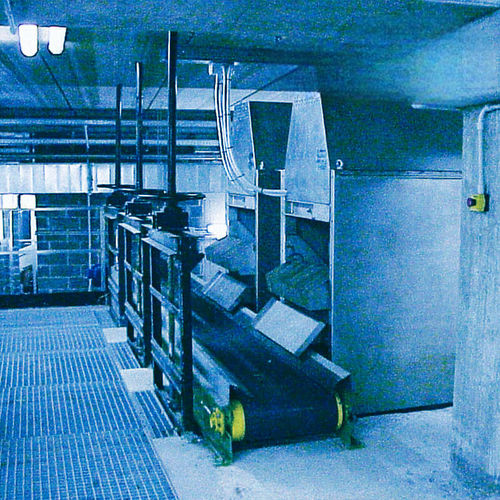

The NT belt conveyor is designed for the transport of solid materials generated in water treatment plants. It comprises a structural steel support frame with a profile for belt guidance, inclination struts sized according to required slope, a wear‑proof closed-loop belt resistant to atmospheric and chemical agents, a motor-driven head roller, support rollers and lateral belt guides, side boards for material containment, a loading hopper and a gear motor. Variants include single, coupled or triad support rollers and alternative conveying solutions such as blade-and-chain on a stationary stainless plate or a stainless-steel wire-mesh belt.

Category / Typology

• Category: WATER INTAKE
• Typology: CONVEYORS

Strengths

• Wear‑resistant closed-loop belt for long service life
• Multiple model variants to match application needs
• Efficient solids handling capacity
• Low maintenance design

Characteristics / Technical specifications

• Models: NT (basic, single support rollers); NT2R (couple rollers); NT3R (triad rollers); NTP (blades integral with chain on stationary stainless plate); NTR (conveyor belt of stainless steel wire mesh)
• Belt orientations: horizontal; sloping (NTI); mixed (horizontal and sloping); sloping-swivelling (NTIB)
• Materials: standard carbon steel with hot-dip galvanization; stainless steel parts available on request
• Main components: structural steel support frame, inclination struts, wear-proof closed-loop belt resistant to atmospheric and chemical agents, motor-driven head roller, support rollers and lateral guides, side boards, loading hopper, gear motor
• Applications: transport of solids produced in water treatment plants
• Customization: wide range of dimensions to select the most suitable conveyor for each installation
