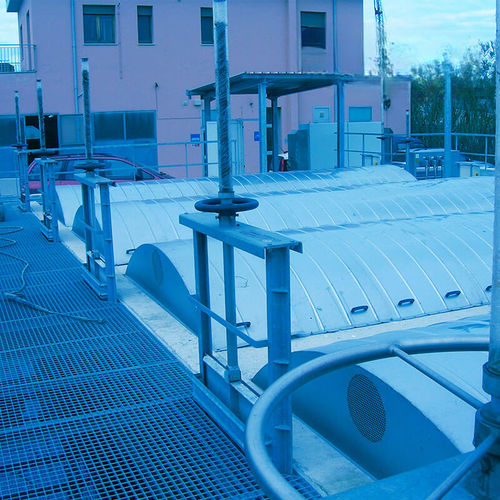

Sluice wall penstock PV3

stainless steel

Product description
The PV sluice gates are used as cut-off elements for channels, level adjusters and storage tanks. They feature an enbloc steel shield, laterally sealed with SBR elastomer hollow round bar, frames in standard steel sections and a driving system with a steel screw hinged to the gate. The handwheel is supported by a thrust rolling element and operates the screw directly, making the PV suitable for small dimensions and low hydrostatic thrust where no gearbox is required. Available with seals on three sides (PV3) or four sides (PV4). Standard construction in carbon steel; stainless steel on request.

Category / Typology

• Water intake
• Penstock gates

Strengths

• Optimal hydraulic tightness
• Simplified manual operation
• Lightweight structural concept

Additional features

• Enbloc steel shield, suitably stiffened
• Lateral seals in SBR elastomer hollow round bar
• Frames in standard steel sections
• Driving system with steel screw hinged to the gate
• Handwheel supported by thrust rolling element (direct manual control)
• Available with seals on three sides (PV3) or four sides (PV4)
• Standard material: carbon steel; stainless steel available on request

Technical specifications

• Series / model name: PV
• Applications: cut-off elements for channels, level adjusters, storage tanks
• Gate: enbloc steel shield, stiffened
• Seals: SBR elastomer hollow round bar; configurations PV3 (three-sided) and PV4 (four-sided)
• Frame: standard steel sections
• Drive: steel screw hinged to gate; direct handwheel operation; handwheel supported by thrust rolling element
• Typical use case: small dimensions and low hydrostatic thrust where no gearbox is required
• Standard material: carbon steel; stainless steel available on request
