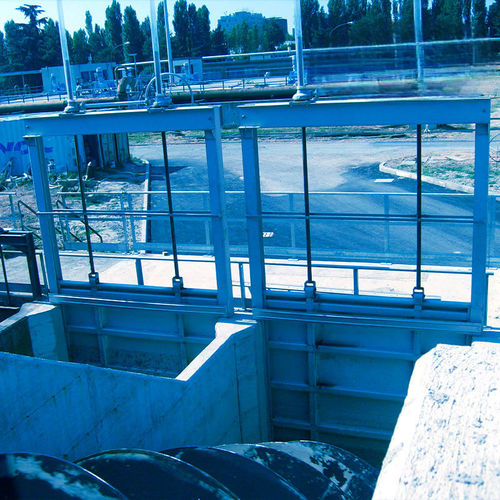

Sluice wall penstock P2V3stainless steel
Add to favorites
Compare this product
Characteristics
- Type
- sluice
- Other characteristic
- stainless steel
Description
CATEGORY / TYPOLOGY WATER INTAKE / PENSTOCKS GATES
DESCRIPTION The P2V series sluice gates are used as shut-off elements for channels, underwater inlets and storage tanks. They feature a one-piece enbloc steel plate with stiffening ribs, lateral seals in SBR elastomer hollow round bar and frames in standard steel sections. Actuation uses steel double screws hinged to the gate and a double-reduction gearbox operated by handwheel; P2V3A/P2V4A versions are supplied with electric actuator. Sealing can be on a smooth seating surface or via a wedge scheme: four sliding bronze wheels on shafts and four wedges bolted to the frame produce horizontal thrust to compress sealing surfaces. Gates are available with seals on three sides (P2V3) or four sides (P2V4), in light, medium or heavy series, and with rising or non-rising screw options. Standard construction is carbon steel; full stainless steel construction is available on request.
KEY FEATURES
VARIANTS
TECHNICAL SPECIFICATIONS
DESCRIPTION The P2V series sluice gates are used as shut-off elements for channels, underwater inlets and storage tanks. They feature a one-piece enbloc steel plate with stiffening ribs, lateral seals in SBR elastomer hollow round bar and frames in standard steel sections. Actuation uses steel double screws hinged to the gate and a double-reduction gearbox operated by handwheel; P2V3A/P2V4A versions are supplied with electric actuator. Sealing can be on a smooth seating surface or via a wedge scheme: four sliding bronze wheels on shafts and four wedges bolted to the frame produce horizontal thrust to compress sealing surfaces. Gates are available with seals on three sides (P2V3) or four sides (P2V4), in light, medium or heavy series, and with rising or non-rising screw options. Standard construction is carbon steel; full stainless steel construction is available on request.
KEY FEATURES
- Suitable for very wide openings
- Manual operation with optional electric actuator
- Modular sealing options: smooth seating or wedge type
VARIANTS
- P2V3: seal on three sides
- P2V4: seal on four sides
- P2V3A / P2V4A: same technical characteristics with electric actuator
- Series: light, medium, heavy
- Type: rising screw or non-rising screw
- Materials: standard carbon steel; stainless steel on request
TECHNICAL SPECIFICATIONS
- Enbloc steel shield with stiffening
- Lateral seals in SBR elastomer hollow round bar
- Frames in standard steel sections
- Driving system: steel double screws hinged to the gate
- Actuation: double-reduction gearbox with handwheel (electric actuator for A versions)
- Sealing options: smooth seating surface or wedge scheme
- Wedge components: four sliding bronze wheels on shafts and four wedges bolted to the frame to provide horizontal thrust
- Seal configurations: three-side (P2V3) or four-side (P2V4)
- Series strength options: light, medium, heavy
- Type options: rising screw or non-rising screw
- Standard material: carbon steel; full stainless steel construction available on request
