Drum screen GRSI

counter currentbarrotary

Product name

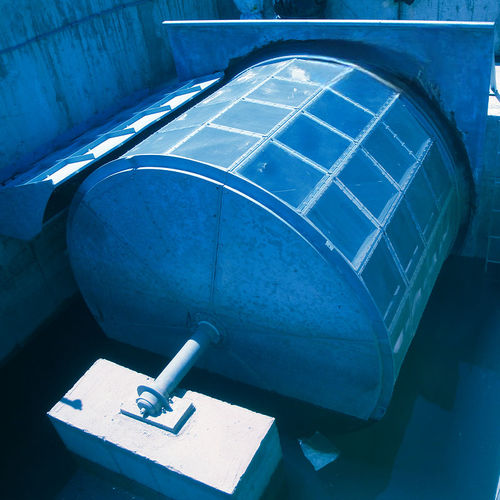

Rotating drum screen (GRSI) designed for micro-screening in water intake applications.

When to use it
The GRSI rotating drum screen is suitable for installation on intakes from sea, lake or river water for cooling systems, desalination, potable water treatment, irrigation and industrial process water supplies.

How it is made

• Sturdy cylindrical support structure reinforced by radial steel profiles to provide a large free cylindrical surface able to withstand hydraulic loads and rotation in water.
• Series of removable filter panels bolted to the structure; each panel has a frame with square mesh or perforated plate.
• Fixed central shaft supporting the drum.
• Two side supports with special self-lubricating bushings sized for continuous operation in water and to support drum rotation relative to the fixed shaft.
• Gearmotor with cylindrical gears driving the drum via a pinion engaging a rack.
• Counter-current washing bar with high-pressure nozzles to clean the filtering surface from inside to outside.
• Hopper to collect screened material and wash water.
• Sealing with gaskets mounted between the rotating drum and a fixed steel part attached to the channel wall.
• Overload protection by standard dynamometric devices or, on request, electronic absorption limiters.
• Simple, rugged design and fully automatic cleaning for sustained performance and long-term reliability.

How it works
Axial incoming flow meets the closed front of the drum and is forced to pass through the cylindrical filtering surface from outside to inside. Filtered water recombines inside the drum and is discharged axially. Solids retained on the outer surface are removed by washing water sprayed counter-currently from the inside to the outside of the drum and are collected in the hopper.

Strengths

• Lower maintenance due to absence of moving mechanical parts submerged in the water.
• Energy saving and extended component life by keeping the drum stationary except during washing cycles.
• High specific flow capacity.
• Robust construction for heavy-duty operation.

Features / Technical specifications

• Model: GRSI (rotating drum screen).
• Application: water intake for cooling systems, desalination, potable water treatment, irrigation and industrial processes.
• Filter panels: removable framed panels with square mesh or perforated plate.
• Drive: gearmotor with cylindrical gears and pinion‑rack transmission.
• Washing system: counter-current bar with high-pressure nozzles (inside → outside).
• Supports: side supports with self-lubricating bushings; fixed central shaft.
• Sealing: gasket system between rotating drum and fixed channel-mounted steel part.
• Hopper: collection of screened solids and wash water.
• Overload protection: dynamometric devices standard; electronic absorption limiters optional.
• Operation: fully automatic cleaning; drum remains stationary except during washing to minimize energy use.
• Construction: steel structure reinforced by radial profiles for high mechanical strength.
