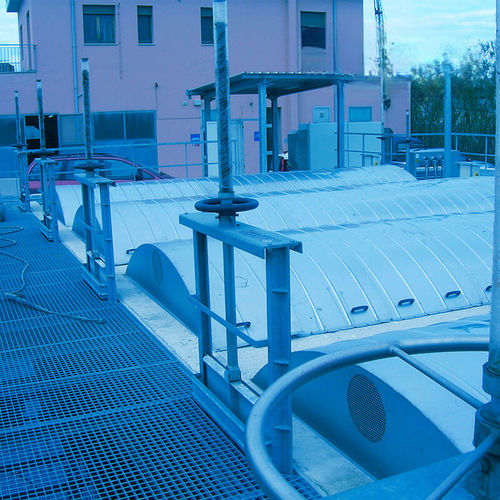

Sluice wall penstock PV4

stainless steel

Product description
The PV-type sluice gates are used as cut-off elements for channels, level regulators and storage tanks. Each unit consists of an enbloc steel shield with stiffeners, lateral seals in SBR elastomer hollow round bar, frames in standard steel sections and a driving system with a steel screw hinged to the gate. The handwheel is supported by a thrust rolling element and directly operates the driving screw. These gates are intended for small to moderate dimensions where hydrostatic thrust is low and a gearbox is not required. Available with seals on three sides (PV3) or four sides (PV4). Standard construction is carbon steel; stainless steel available on request.

Category / Typology
CATEGORY: WATER INTAKE
TYPOLOGY: PENSTOCKS GATES

Strengths

• Optimum hydraulic sealing performance
• Simple manual operation via handwheel
• Lightweight construction adapted to small sizes

Technical specifications

• Enbloc steel shield with welded stiffening elements
• Lateral seals: SBR elastomer hollow round bar
• Frames manufactured from standard steel sections
• Driving system: steel screw hinged to the gate
• Handwheel supported by thrust rolling element; direct control of the driving screw
• Suitable for small dimensions and low hydrostatic thrust (no gearbox required)
• Seal configurations: three-sided (PV3) or four-sided (PV4)
• Standard material: carbon steel; stainless steel on request
