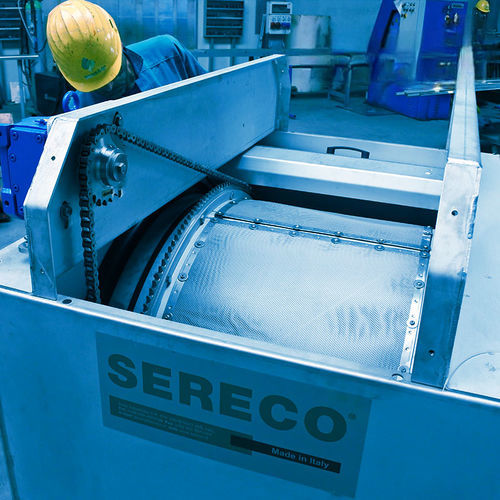

Water filter GRSIS

panel

Category & Type
CATEGORY: WATER INTAKES
TYPE: FILTERS

Product
The GRSIS is a compact rotating drum filter designed for filtration of small flow rates (up to some hundreds of m3/h) of wastewater, seawater, lake or river water for industrial processes, drinking water production, irrigation or general production processes.

Construction

• Fully enclosed compact parallelepiped housing in stainless steel containing all components.
• Horizontal cylindrical drum reinforced by radial steel profiles to provide a large free cylindrical surface resistant to rotation and hydraulic loads.
• Series of bolted removable filter panels in square mesh or perforated plate for easy replacement.
• Fixed central shaft supporting the drum.
• Two side supports with self-lubricating bushings sized for continuous operation in water.
• Gearmotor with cylindrical gears; drum rotation via pinion engaging a rack.
• Counter-current washing bar with high-pressure nozzles to clean the filter from inside to outside.
• Hopper for collection of screened solids and wash water; gasket sealing between drum and container wall.
• Overload protection via dynamometric devices or optional electronic absorption limiters; electrical control panel included.

Operation
Influent enters axially through a flanged inlet. Water flows through the filter panels from outside to inside; filtered water recombines and exits axially via a flanged outlet. Solids retained on the outer surface are displaced into the hopper by the counter-current washing and discharged through a flanged outlet. The unit includes a wash-water filter, overflow flange and bottom discharge as standard options.

Advantages

• Compact, easily movable unit suitable for limited space installations.
• Entirely stainless steel construction for corrosion resistance in marine and freshwater applications.
• Automatic backwash reduces routine maintenance needs.
• Filtering opening can be changed to suit different solids and application requirements.

Technical specifications

• Model / Series: GRSIS
• Suitable flow rate: small flow rates (some hundreds of m3/h)
• Applications: wastewater to be purified, sea/lake/river water; industrial processes, drinking water production, irrigation, general production processes
• Construction material: stainless steel
• Filtering elements: bolted removable panels with square mesh or perforated plate; adjustable/changeable opening
• Drive: gearmotor with cylindrical gears, pinion and rack transmission
• Cleaning: counter-current high-pressure washing from inside to outside; fully automatic cleaning system
• Supports and bearings: supports with self-lubricating bushings for continuous water operation
• Sealing: gasket-based sealing between rotating drum and container wall
• Discharges and connections: inlet/outlet flanged connections, overflow flange, bottom discharge, hopper for solids and wash water
• Accessories: filter on wash-water pipe, electrical control panel
• Protection: dynamometric overload protection or optional electronic absorption limiters
