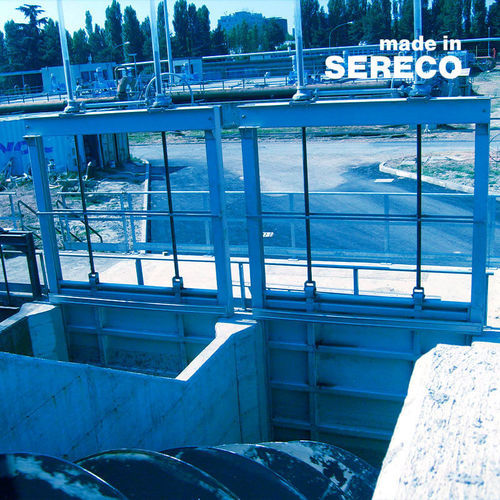

Sluice wall penstock P2V4stainless steel
Add to favorites
Compare this product
Characteristics
- Type
- sluice
- Other characteristic
- stainless steel
Description
Description
The P2V sluice gates are used as cut-off elements for channels, submerged openings and storage tanks. They consist of a monobloc steel shield suitably stiffened, lateral seals in SBR elastomer hollow round bar, frames in standard steel sections, and a driving system with steel double screws hinged to the gate and a double reduction gearbox with handwheel. Sealing can be performed on a smooth-surface scheme or by a wedge system: four sliding bronze wheels on shafts and four wedges bolted to the frame generate a horizontal thrust compressing the sealing surfaces. The sluice gates are available with seals on three sides (P2V3) or on four sides (P2V4). Versions P2V3A and P2V4A have the same technical characteristics but are supplied with an electric actuator. Any version can be supplied as light, medium or heavy series and with rising or non-rising screw. Standard construction is carbon steel; full stainless steel can be supplied on request.
Category / Typology
CATEGORY: WATER INTAKE
TYPOLOGY: PENSTOCKS GATES
Available versions
Strengths
Technical characteristics
The P2V sluice gates are used as cut-off elements for channels, submerged openings and storage tanks. They consist of a monobloc steel shield suitably stiffened, lateral seals in SBR elastomer hollow round bar, frames in standard steel sections, and a driving system with steel double screws hinged to the gate and a double reduction gearbox with handwheel. Sealing can be performed on a smooth-surface scheme or by a wedge system: four sliding bronze wheels on shafts and four wedges bolted to the frame generate a horizontal thrust compressing the sealing surfaces. The sluice gates are available with seals on three sides (P2V3) or on four sides (P2V4). Versions P2V3A and P2V4A have the same technical characteristics but are supplied with an electric actuator. Any version can be supplied as light, medium or heavy series and with rising or non-rising screw. Standard construction is carbon steel; full stainless steel can be supplied on request.
Category / Typology
CATEGORY: WATER INTAKE
TYPOLOGY: PENSTOCKS GATES
Available versions
- P2V3 (seals on three sides)
- P2V4 (seals on four sides)
- P2V3A, P2V4A (same technical characteristics with electric actuator)
Strengths
- Suitable for very large widths
- Simple operation via handwheel or electric actuator
- Available configurations for light, medium and heavy duty applications
Technical characteristics
- Construction: standard carbon steel; full stainless steel on request
- Shield: monobloc steel shield, suitably stiffened
- Frames: standard steel sections
- Seals: lateral seals in SBR elastomer hollow round bar; available seals on three or four sides
- Sealing types: smooth-surface sealing or wedge system with four sliding bronze wheels on shafts and four wedges bolted to the frame to obtain horizontal thrust
- Driving system: steel double screws hinged to the gate; double reduction gearbox with handwheel
- Actuation: manual with handwheel; electric actuator available for P2V3A and P2V4A
- Series: available as light, medium or heavy series
- Screw type: rising or non-rising screw options
