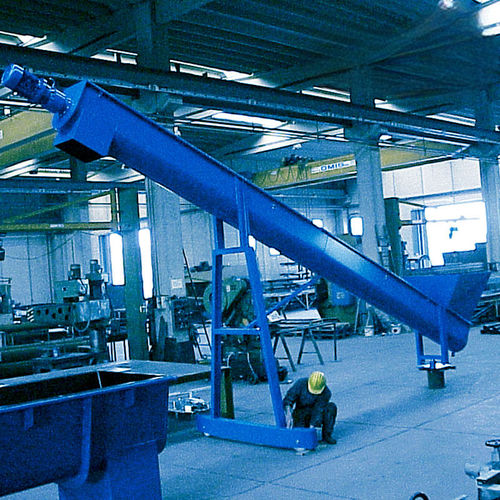

Screw conveyor TC

tubularinclined

Description
TC screw conveyor has been designed for the transportation of sludge and screened material. It consists of a sturdy metal sheet channel provided, on the forward end, with a top loading hopper and on the opposite side end with a discharge opening, a tubular shaft on which a screw with constant diameter and pitch is welded, and a driving gear motor. The screw, rotating around its axis, pushes the material toward the discharge end. The type TCSA, consisting of a central shaftless screw, can also be supplied and is particularly recommended for filamentous solid materials. Both models can be installed in horizontal or sloping positions (TCI, TCISA). The channel can be closed by steel covers to guarantee hygiene and safety. For steep inclinations an execution with the screw completely tubed is available. The standard construction is carbon steel with hot-dip galvanization; metallic parts can be produced in stainless steel on request.

Category / Typology

• Category: Water intake
• Typology: Conveyors

Strengths

• Optimum transport capacity even at high heads
• Option for fully enclosed execution for maximum hygiene and safety
• Very low maintenance requirements
• Sturdy construction

Features / Technical specifications

• Application: transportation of sludge and screened material
• Standard construction: carbon steel with hot-dip galvanization
• Optional construction: stainless steel metallic parts on request
• Main components: metal sheet channel, top loading hopper, discharge opening, tubular shaft, welded screw with constant diameter and pitch, driving gear motor
• Type variants: TC (with tubular shaft) and TCSA (central shaftless screw) — TCSA recommended for filamentous solid materials
• Installation positions: horizontal or sloping (also referenced as TCI, TCISA for sloping/horizontal executions)
• Optional: completely tubed screw execution for large inclinations
• Channel closure: steel covers available to ensure hygiene and safety
