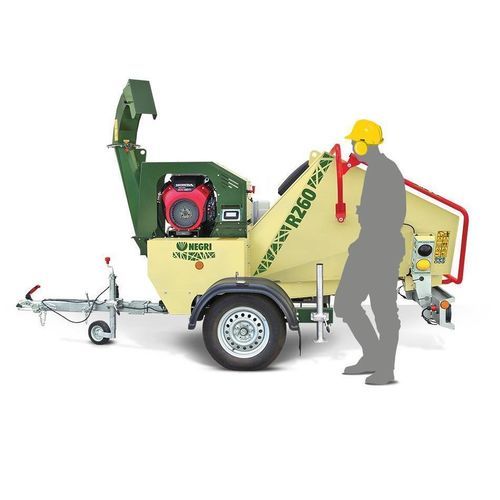

Towed wood chipper R260-M

diesel enginehydraulic supply

Overview
Shredders-chippers designed to reduce volume of small and large pruning and green waste to facilitate transport and to produce high-quality compost or wood chips. Suitable for bio-shredding of wood containing small stones/nails and soil.

Main features

• Hourly capacity: 10 - 14 m³/h*
• Throat opening (feed inlet): 230 x 130 mm
• Maximum wood diameter: Ø max. 130 mm
• Rotor tools: 24 hammers (mobile reversible hardened steel hammers)

Available versions

• Road trailer
• Tractor-mounted (three-point linkage, longitudinal or transverse)
• Tracks (tracked trolley)

Power & typical engines

• Road trailer - Petrol: 21 hp / 15.5 kW (typical engine selection)
• Road trailer - Diesel: 20 hp / 14.9 kW (typical engine selection)
• Tractor versions: ≥ 35 hp / 25.7 kW required
• Tracks - Petrol: 21 hp / 15.5 kW (typical engine selection)
• Tracks - Diesel: 20 hp / 14.9 kW (typical engine selection)

Basic equipment & system highlights

• ROTOR | Hammers: rotor with hammers suitable for heavy-duty bio-shredding
• High-quality tools: mobile reversible hammers (hardened steel)
• Fixed removable refining screen to guarantee consistent small chip size
• Hydraulic feeding roller with adjustable speed and reversible rotation for efficient feeding
• Steel feeding conveyor belt with adjustable speed and reversible rotation to achieve high hourly output
• Rotary ejection pipe with adjustable discharge distance for operator safety
• Large, ergonomic hopper to facilitate feeding and increase hourly output
• Lubrication system for bearings to simplify and speed up maintenance
• OBS - On Board System: automatic control of vegetable waste feed (Nostress) and machine functional parameters

Accessories

• Ejection pipe extension

Notes
* Input material - Data depending on type of material and working conditions.

Technical specifications

• Model: R260-M
• Hourly capacity: 10 - 14 m³/h*
• Throat opening: 230 x 130 mm
• Max. wood diameter: Ø 130 mm
• Number of hammers (rotor): 24
• Typical petrol power (road/tracks): 21 hp / 15.5 kW
• Typical diesel power (road/tracks): 20 hp / 14.9 kW
• Tractor power requirement: ≥ 35 hp / 25.7 kW
• Key systems: hydraulic feeding roller, steel feeding conveyor, fixed removable refining screen, rotary ejection pipe, lubrication system, OBS (On Board System)
