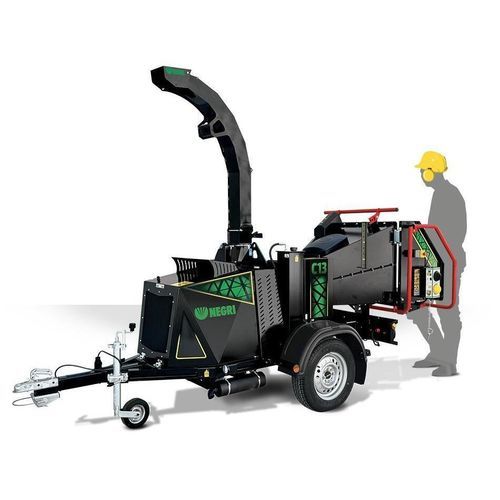

Towed wood chipper C13 series

diesel enginehydraulic supply

Overview
C13 is a shredder-chipper engineered for processing small and large pruning from green areas. It reduces volume for easier transport and produces uniform wood chips suitable for composting or biomass use.

Main features

• Hourly capacity: 2 t/h*
• Feed opening: 162 x 150 mm
• Maximum wood diameter: Ø 150 mm
• Blades: 2
• Hammers: 10 (mobile reversible, hardened steel)
• Counter-blade: 1 (adjustable, steel)

Versions and power

• Road trailer – Diesel: 26.5 hp / 19.5 kW (engine: Kubota D1105) — version C13DK26ON
• Road trailer – Petrol: 25 hp / 18.4 kW (engine: Honda IGX800) — version C13BH25ON
• Tractor (three-point linkage / transverse machine): ≥ 35 hp / 25.7 kW — version C13TN
• Tracks – Petrol: 25 hp / 18.4 kW (engine: Honda IGX800) — version C13BH25CN
• Tracks – Diesel: 26.5 hp / 19.5 kW (engine: Kubota D1105) — version C13DK26CN

Basic equipment

• DISC | Blades + counter-blade — for producing chip-like material from medium to large branches
• High-quality tools: fixed sharpenable blades (hardened steel) and mobile reversible hammers (hardened steel)
• Adjustable counter-blade (steel) — improves cutting performance and tool life
• Fixed removable refining screen — ensures consistent small chip size
• Hydraulic feeding roller with adjustable speed and rotation direction — efficient feeding of green waste
• Folding, rotary ejection pipe with adjustable discharge distance — simplifies discharge and transport safety
• Folding, large hopper — facilitates loading and transport, increasing throughput
• Lubrication system for bearings — simplifies maintenance
• OBS - On Board System — automatic feed control (NoStress) and monitoring of machine parameters

Notes

• * Input material: throughput depends on material type and working conditions

Technical specifications

• Model: C13
• Hourly capacity: 2 t/h*
• Feed opening: 162 x 150 mm
• Max wood Ø: 150 mm
• Number of blades: 2
• Number of hammers: 10
• Counter-blade: 1 (adjustable)
• Available power sources: Diesel, Petrol, Tractor PTO (three-point linkage), Tracks
• Engines referenced: Kubota D1105 (Diesel), Honda IGX800 (Petrol)
• Primary equipment: Disc cutting system with blades + counter-blade, refining screen, hydraulic feeding roller, folding hopper and ejection pipe, lubrication system, OBS control
