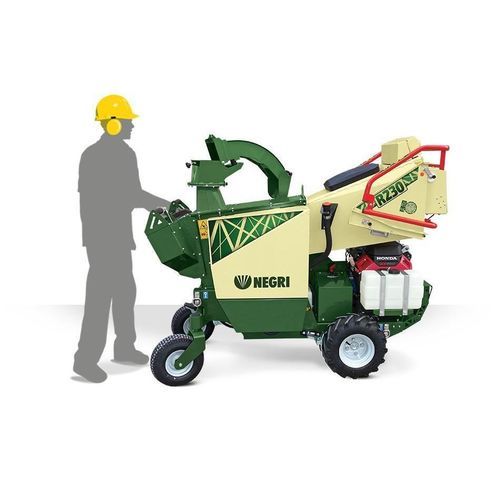

Self-propelled wood chipper R230-M

hydraulic supply

Product
Self-propelled trailer wood chipper-shredder model R230-M (variant R230BH21SN-M) designed to reduce pruning from green areas into wood chips or compostable material, facilitate transport and handling. Suitable for small and medium branches up to 110 mm diameter.

Main technical data

• Hourly capacity: 7 - 9 m³/h*
• Throat opening: 230 x 110 mm
• Maximum wood diameter (Ø max.): 110 mm
• Number of hammers: 24

Version / Powertrain
Self-propelled trailer. Power source: Petrol. Engine: Honda GX630 — 21 hp / 15.5 kW. Product variant referenced on the page: R230BH21SN-M.

Basic equipment

• ROTOR: Hammers suitable for shredding wood containing small stones/nails and soil (bio-shredder type)
• Mobile reversible hammers in hardened steel
• Fixed removable refining screen to ensure small chip size
• Hydraulic feeding roller with adjustable speed and reversible rotation for efficient feeding
• Folding rotary ejection pipe with adjustable discharge distance to facilitate transport and protect the operator
• Folding wide hopper to ease loading and increase hourly output
• Lubrication system for bearings to simplify maintenance
• Ergonomic central control console
• OBS (On Board System): automatic control of green waste feed (Nostress) and machine functional parameters
• Self-propelled trailer for easy movement and safe loading/unloading
• Hydraulic differential steering (Gentle Lawn) to limit wheel skidding when cornering

Notes
* Input material: performance data depend on the type of material and working conditions.

Technical specifications

• Model: R230-M
• Variant referenced: R230BH21SN-M
• Hourly capacity: 7 - 9 m³/h (depending on material and conditions)
• Throat opening: 230 x 110 mm
• Maximum wood diameter: Ø 110 mm
• Number of hammers: 24 (mobile reversible, hardened steel)
• Engine: Honda GX630 — 21 hp / 15.5 kW (petrol)
• Feeding: Hydraulic feeding roller with adjustable speed and rotation direction
• Refining: Fixed removable refining screen
• Ejection: Folding rotary ejection pipe with adjustable discharge distance
• Additional systems: OBS (On Board System), lubrication system for bearings, ergonomic console, folding hopper, self-propelled trailer, hydraulic differential steering
