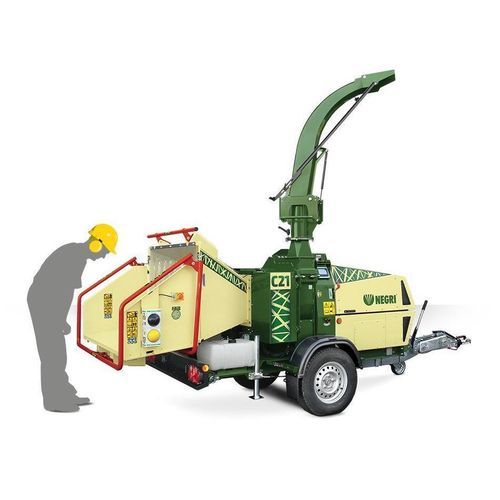

Towed wood chipper C21 series

diesel enginehydraulic supply

Product family
Shredders - Chippers designed to remove thatch, thin grass roots and process pruning waste. Suitable for shredding both small and large green pruning to produce wood chips or reduce volume for transport and composting.

Model / Versions

• Road trailer: variants include C21DL56OTRGN, C21DL56OTRON
• Tractor (three-point linkage / longitudinal machine): variant C21TPN
• Towed by tractor: variant C21TTN
• Tracks: variant C21DL56CN

Power & engine (per version)

• Road trailer: Diesel — hp/kW 56 / 42 — engine example: Kohler KDI1903TCR
• Tractor / Towed by tractor: required power ≥ 60 / 44 hp/kW
• Tracks: Diesel — hp/kW 56 / 42 — engine example: Kohler KDI1903TCR

Basic equipment

• DISC | Blades + Counter-blade — Suitable for shredding medium or large-sized material to produce wood chips (typical chipper performance)
• High-quality tools — Adjustable, sharpenable blades made of hardened steel
• Fixed counter-blade (hardened steel) — improves cutting quality and blade life
• Hydraulic feeding rollers with adjustable speed and rotation direction — optimise feeding of vegetal material
• Folding, rotary ejection pipe with adjustable discharge distance — improves transport and operator safety
• Folding, large hopper — eases transport and feeding, enabling high hourly output
• Lubrication system for bearings — simplifies and speeds up maintenance
• Equal Force system — maintains constant roller compression force for excellent material traction
• OBS - On Board System — automatic control of vegetal feed (Nostress) and monitoring of machine functional parameters

Notes
* Input material: performance data depend on material type and operating conditions.
