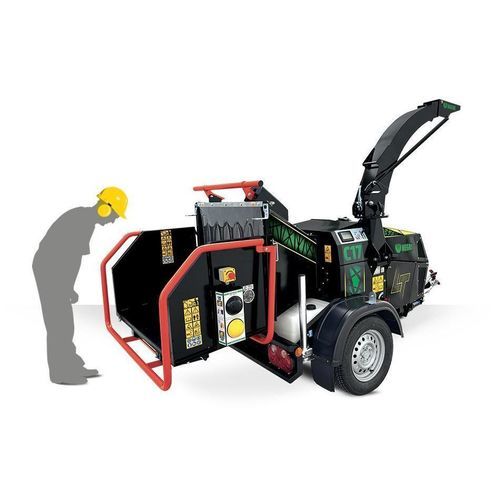

Towed wood chipper C17LTBB40ON

wheeledhydraulic supply

Product overview
Shreds medium and large prunings and green-area cuttings to reduce volume for transport and to produce wood chips suitable for composting or biomass use. Road-trailer mounted, petrol-powered unit designed for mobile vegetation management.

Main technical data

• Hourly capacity: 7.5 t/h* (depending on material)
• Throat opening: 210 x 170 mm
• Maximum wood diameter: 170 mm
• Cutting elements: 2 blades, 1 counter-blade

Versions & Power

• Version: Road trailer (shown variant: C17LTBB40ON)
• Power source: Petrol
• Engine power: 40 hp / 29.9 kW
• Displayed engine: Briggs & Stratton Vanguard EFI40

Cutting system / Basic equipment

• DISC cutting system with blades and counter-blade — produces wood chips suitable for chipping applications.
• Hardened, adjustable and resharpenable blades to extend service life.
• Fixed hardened counter-blade to improve cutting performance.
• Hydraulic feeding rollers with adjustable speed and direction for reliable material intake.
• Folding, rotary ejection pipe with adjustable discharge distance for safe chip evacuation and easier transport.
• Large folding hopper for easy loading and transport.
• Bearings lubrication system to simplify maintenance.
• OBS (On Board System) for automatic feed control (NoStress) and machine monitoring.

Available variants / part reference

• C17LTBB40ON (road trailer petrol version shown)

Notes
* Input material and hourly capacity depend on material type and working conditions.

Technical specifications

• Model: C17LT
• Hourly capacity: 7.5 t/h*
• Throat opening: 210 x 170 mm
• Max wood diameter: 170 mm
• Number of blades: 2
• Number of counter-blades: 1
• Hammers: not applicable
• Power source: Petrol
• Engine power: 40 hp / 29.9 kW
• Displayed engine: Briggs & Stratton Vanguard EFI40
• Standard cutting system: DISC with blades + counter-blade
• Main features: hydraulic feeding rollers, folding hopper, folding rotary ejection pipe, lubrication system, OBS on-board control
