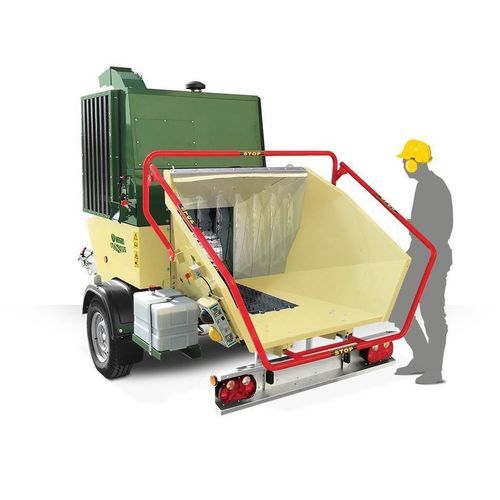

Towed wood chipper R340-M
diesel enginehydraulic supply

Towed wood chipper - R340-M - NEGRI Srl - diesel engine / hydraulic supply
Towed wood chipper - R340-M - NEGRI Srl - diesel engine / hydraulic supply
Towed wood chipper - R340-M - NEGRI Srl - diesel engine / hydraulic supply - image - 2
Towed wood chipper - R340-M - NEGRI Srl - diesel engine / hydraulic supply - image - 3
Towed wood chipper - R340-M - NEGRI Srl - diesel engine / hydraulic supply - image - 4
Towed wood chipper - R340-M - NEGRI Srl - diesel engine / hydraulic supply - image - 5
Towed wood chipper - R340-M - NEGRI Srl - diesel engine / hydraulic supply - image - 6
Towed wood chipper - R340-M - NEGRI Srl - diesel engine / hydraulic supply - image - 7
Towed wood chipper - R340-M - NEGRI Srl - diesel engine / hydraulic supply - image - 8
Towed wood chipper - R340-M - NEGRI Srl - diesel engine / hydraulic supply - image - 9
Towed wood chipper - R340-M - NEGRI Srl - diesel engine / hydraulic supply - image - 10
Towed wood chipper - R340-M - NEGRI Srl - diesel engine / hydraulic supply - image - 11
Towed wood chipper - R340-M - NEGRI Srl - diesel engine / hydraulic supply - image - 12
Add to favorites
Compare this product

Characteristics

Type
towed
Engine type
diesel engine
Other characteristic
hydraulic supply

Description

Overview
  • Shredders-chippers designed to reduce the volume of small and large pruning and green-waste residues to facilitate transport and produce compost or wood chips. Suitable for agricultural contractors, municipalities and land maintenance professionals.


Main performance
  • Hourly capacity: 25 - 30 m³/h*
  • Throat opening: 390 x 180 mm
  • Maximum wood diameter: Ø 180 mm
  • Number of hammers: 40


Versions
  • Road trailer — Diesel. Power: 56 / 42 (hp / kW). Engine: Kohler KDI1903TCR. Available variants: R340DL56OTRGN-M, R340DL56OTRON-M.
  • Tractor — Towed by tractor. Required power: ≥ 60 / 44 (hp / kW). Available model: R340TN-M.
  • Tracks — Diesel. Power: 56 / 42 (hp / kW). Engine: Kohler KDI1903TCR. Available variant: R340DL56CN-M.


Basic equipment
  • ROTOR | Hammers — Designed for shredding wood that may contain small stones, nails or soil (typical of bio-shredders).
  • High-quality reversible hammers (hardened steel) for extended service life.
  • Fixed removable refining screen — Ensures consistently small chip size for composting or biomass use.
  • Hydraulic feeding roller with adjustable speed and rotation direction — Improves feed control of green waste and branches.
  • Steel conveyor belt with adjustable speed and rotation direction — Facilitates feeding and supports high hourly throughput.
  • Rotary discharge pipe with adjustable throw — Directs chips away from the operator to enhance safety.
  • Large, ergonomic hopper — Eases loading of green waste and allows continuous feeding.
  • Lubrication system for bearings — Simplifies and speeds up routine maintenance.
  • OBS (On Board System) — Automatic feed control (Nostress) and real-time monitoring of machine parameters.


Notes
  • * Input material and performance depend on material type and working conditions.


Technical specifications
  • Model: R340-M
  • Hourly capacity: 25 - 30 m³/h*
  • Throat opening: 390 x 180 mm
  • Maximum wood diameter: 180 mm
  • Number of hammers: 40
  • Road trailer engine option: Kohler KDI1903TCR — 56 / 42 (hp / kW)
  • Tractor version required power: ≥ 60 / 44 (hp / kW)
  • Available versions: R340DL56OTRGN-M, R340DL56OTRON-M, R340TN-M, R340DL56CN-M
  • Feeding: hydraulic roller and steel conveyor belt with adjustable speed and rotation direction
  • Refining: fixed removable screen for small chip size
  • Protection & safety: rotary discharge pipe with adjustable throw
  • Maintenance: lubrication system for bearings
  • Control: OBS (On Board System) for automatic feed control and machine parameter monitoring
