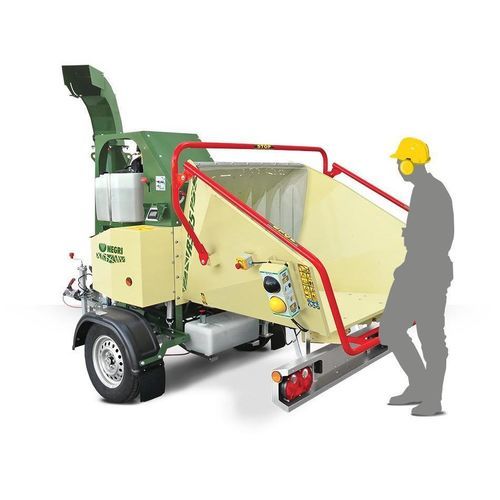

Towed wood chipper R335-M

hydraulic supply

Overview
Suitable for shredding wood containing small stones, nails and soil—typical for bio-shredders. Designed for processing green waste and arboricultural residues.

Versions

• Road trailer — Power: 38 / 28 hp/kW (Kohler ECH980). Model: R335BK38ON-M
• Tractor (three-point linkage, longitudinal machine) — Power: ≥ 40 / 29.5 hp/kW. Models: R335TPN-M (tractor) and R335TTN-M (towed by tractor)

Basic equipment

• ROTOR | Hammers: Suitable for shredding wood containing small stones, nails and soil
• High-quality tools: Mobile reversible hammers (hardened steel)
• Fixed removable refining screen: Ensures small chip size
• Hydraulic feeding roller with adjustable speed and rotation direction: Improves vegetal waste feed efficiency
• Rotary ejection pipe with adjustable discharge distance: Protects the operator by directing chips away
• Large and handy hopper: Facilitates feeding and enables high hourly output
• Lubrication system for bearings: Simplifies and speeds up maintenance
• OBS - On Board System: Automatically controls the vegetal waste feed (Nostress) and the machine functional parameters

Accessories

• Ejection pipe extension

Notes
* Input material - Data depend on the type of material and working conditions.

Technical specifications

• Hourly capacity: 15 - 20 m³/h*
• Throat opening: 390 x 160 mm
• Maximum wood diameter (Ø max.): 160 mm
• Hammers: 68
• Main available models/versions: R335BK38ON-M (road trailer), R335TPN-M (tractor), R335TTN-M (towed by tractor)
• Typical engine (road trailer): Kohler ECH980 (38 / 28 hp/kW)
• Tractor engine requirement: ≥ 40 / 29.5 hp/kW
