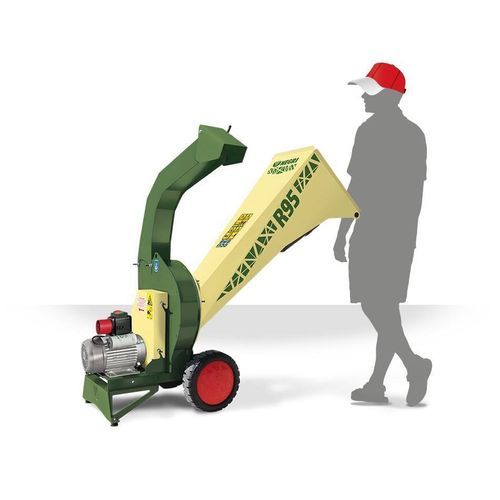

Mounted wood chipper R95 series

wheeledelectric

Product family
Shredders-chippers for pruning and green-waste management. The R95 reduces volume of small and large prunings to facilitate transport and to produce compost or wood chips suitable for mulching and biomass.

Main features

• Hourly capacity: 3 - 6 m³/h (depending on material and working conditions)
• Throat opening: 130 x 170 mm
• Maximum wood diameter: Ø 70 mm
• Blades: 1 (disc)
• Hammers: 8 (mobile reversible hammers)
• Counter-blade: 1 (reversible, hardened steel)

Versions & power options

• Electric manual handling: R95EHP3 — 3 hp / 2.2 kW (220 V - 50 Hz)
• Electric manual handling: R95EHP4 — 4 hp / 3 kW (380 V - 50 Hz)
• Petrol manual handling: R95BHHP55GP — 5.5 hp / 4 kW (Honda GP160)
• Petrol manual handling: R95BHHP65 — 6.5 hp / 4.8 kW (Honda GX200)
• Petrol motorized (higher capacity): R95BHHP13 — 13 hp / 9.6 kW (Honda GX390)
• Tractor (three-point linkage, longitudinal machine): R95T — ≥ 13 hp / 9.6 kW

Basic equipment

• DISC: Blade(s) + counter-blade — suitable for shredding medium and large material to produce wood chips
• Bi-blade disc (only motorized hp13 version) for increased capacity
• High-quality replaceable blade (hardened steel) and mobile reversible hammers (hardened steel)
• Reversible counter-blade (hardened steel) to improve cutting and extend blade life
• Adjustable refining screen to guarantee smaller chip size
• Ejection pipe with adjustable discharge distance to load chips into a container
• Hopper with handle to facilitate machine movement

Notes

• Input material and performance figures depend on material type and working conditions

Technical specifications

• Model: R95
• Hourly capacity: 3 - 6 m³/h*
• Throat opening: 130 x 170 mm
• Max wood diameter: Ø 70 mm
• Number of blades: 1 (disc)
• Number of hammers: 8 (mobile reversible)
• Counter-blade: 1 (reversible, hardened steel)
• Electric versions: 220 V - 50 Hz (3 hp / 2.2 kW), 380 V - 50 Hz (4 hp / 3 kW)
• Petrol engines: Honda GP160 (5.5 hp / 4 kW), Honda GX200 (6.5 hp / 4.8 kW), Honda GX390 (13 hp / 9.6 kW)
• Tractor version: three-point linkage, longitudinal machine, ≥13 hp / 9.6 kW
