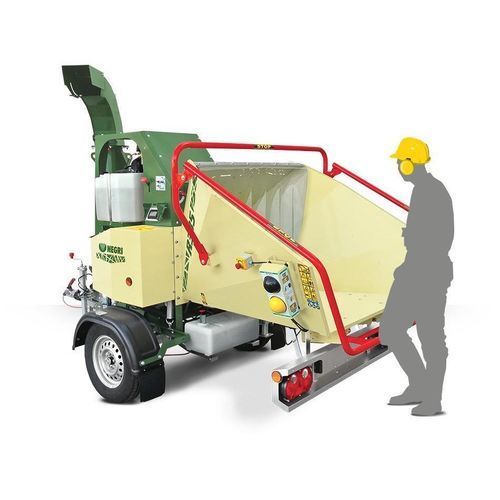

Towed wood chipper R335BK38ONhydraulic supply
Add to favorites
Compare this product
Characteristics
- Type
- towed
- Other characteristic
- hydraulic supply
Description
Product family
Overview
Main features
Versions
Equipment included / highlights
Documents
Notes
Technical specifications
- Shredders - Chippers (bio-shredders for green area pruning and wood waste)
Overview
- High-capacity industrial shredder-chipper designed to process pruning residues and wood waste into chips for transport or composting.
- Rotor combination of blades and hammers enables effective shredding of dry, damp and fibrous wood materials.
Main features
- Hourly capacity: 15 - 20 m³/h* (dependent on input material and working conditions)
- Throat opening: 390 x 160 mm
- Maximum wood diameter: Ø max. 160 mm
- Blades: 6 (sharpenable, hardened steel)
- Hammers: 22 (mobile, reversible, hardened steel)
- Fixed removable refining screen to ensure consistent small chip size
- Hydraulic feeding roller with adjustable speed and rotation direction for controlled feed
- Rotary ejection pipe with adjustable discharge distance for safe chip placement
- Large, ergonomic hopper to facilitate loading and achieve high throughput
- Lubrication system for bearings to simplify maintenance
- OBS (On Board System): automatic control of material feed (Nostress) and machine parameters
- Accessory available: ejection pipe extension
Versions
- Road trailer (petrol) — engine example: Kohler ECH980, 38 hp / 28 kW — reference R335BK38ON
- Tractor (three-point linkage / longitudinal machine) — required power ≥ 40 hp / 29.5 kW — reference R335TPN
- Towed by tractor — required power ≥ 40 hp / 29.5 kW — reference R335TTN
Equipment included / highlights
- Rotor: Blades + Hammers suitable for damp and fibrous wood
- Sharpenable blades (hardened steel)
- Mobile reversible hammers (hardened steel)
- Fixed removable refining screen
- Hydraulic feeding roller (adjustable speed and rotation direction)
- Rotary ejection pipe (adjustable discharge distance)
- Large hopper for easy feeding
- Lubrication system for bearings
- OBS for automatic feed control and machine monitoring
Documents
- Brochure available for R335 (technical and marketing brochure)
Notes
- * Input material - data depend on the type of material and working conditions.
Technical specifications
- Model: R335
- Hourly capacity: 15 - 20 m³/h*
- Throat opening: 390 x 160 mm
- Ø max. wood: 160 mm
- Blades: 6 (sharpenable)
- Hammers: 22 (mobile, reversible)
- Rotor configuration: Blades + Hammers
- Road trailer power example: 38 hp / 28 kW (Kohler ECH980) — version R335BK38ON
- Tractor (three-point) required power: ≥ 40 hp / 29.5 kW — version R335TPN
- Towed by tractor required power: ≥ 40 hp / 29.5 kW — version R335TTN
- Refining screen: fixed removable
- Feeding: hydraulic roller with adjustable speed and rotation direction
- Ejection: rotary ejection pipe with adjustable discharge distance (accessory: extension available)
- Maintenance: lubrication system for bearings
- Control: OBS - On Board System (automatic feed control, Nostress)
