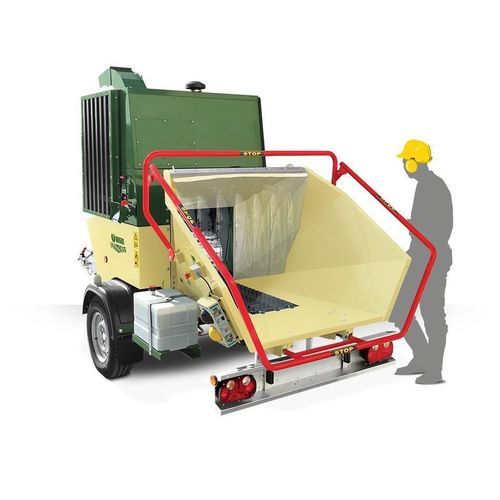

Towed wood chipper R340 series

diesel enginehydraulic supply

Product overview
R340 is a mobile wood shredder designed to process small and large prunings and green waste, reducing volume for easier transport and producing uniform chips suitable for composting or energy use.

Main features

• Hourly capacity: 25 - 30 m³/h*
• Throat opening: 390 x 180 mm
• Maximum log diameter: Ø 180 mm
• Cutting system: 4 blades + 20 hammers (Blades + Hammers rotor)
• Rotor adapted to damp and fibrous wood
• Mobile reversible hardened-steel hammers
• Fixed removable refining screen for consistent chip size
• Hydraulic feeding roller with adjustable speed and rotation direction
• Steel feeding conveyor with adjustable speed and rotation direction
• Rotary ejection pipe with adjustable discharge distance
• Large hopper to facilitate loading
• Bearings lubrication system for easier maintenance
• OBS (On Board System): automatic feed control and machine parameter monitoring

Versions / Powertrain (summary)
Road trailer | Diesel | 56 hp / 42 kW | Kohler KDI1903TCR | R340DL56OTRGN, R340DL56OTRON
Tracks | Diesel | 56 hp / 42 kW | Kohler KDI1903TCR | R340DL56CN
Tractor (towed) | PTO / Towed | ≥ 60 hp / 44 kW | (tractor power) | R340TN

Basic equipment & functional items

• ROTOR: Blades + Hammers system
• Mobile reversible hardened-steel hammers
• Fixed removable refining screen
• Hydraulic feeding roller with adjustable speed and direction
• Steel feeding conveyor with adjustable speed and direction
• Rotary ejection pipe with adjustable discharge
• Large hopper for easy feeding
• Bearings lubrication system
• OBS for automatic feed control and monitoring

Notes
* Input material - data depend on the type of material and working conditions.

Technical specifications

• Model: R340
• Hourly capacity: 25 - 30 m³/h*
• Throat opening: 390 x 180 mm
• Maximum wood diameter: Ø 180 mm
• Number of blades: 4
• Number of hammers: 20
• Available versions: Road trailer (R340DL56OTRGN / R340DL56OTRON), Tracks (R340DL56CN), Tractor towed (R340TN)
• Road / Tracks engine: 56 hp / 42 kW (Kohler KDI1903TCR)
• Feeding: hydraulic roller + steel conveyor with adjustable speed and rotation direction
• Ejection: rotary ejection pipe with adjustable discharge distance
• Screen: fixed removable refining screen
• Maintenance: bearings lubrication system
• Control: OBS - On Board System (automatic feed control, Nostress)
