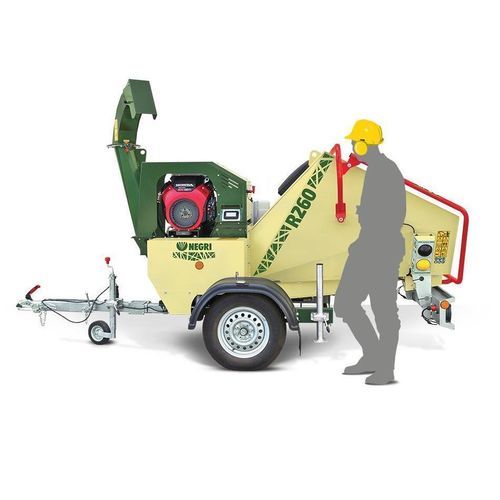

Towed wood chipper R260 series

diesel enginehydraulic supply

Overview

Designed for shredding light and heavy pruning from green areas, the R260 reduces volume for easier transport and produces uniform chips suitable for composting or biomass use.

Main performance

• Hourly capacity: 10 - 14 m³/h*
• Throat opening: 230 x 130 mm
• Maximum wood diameter: Ø 130 mm
• Blades: 2
• Hammers: 20

Versions and power options

• Road trailer (petrol) - engine: 21 hp / 15.5 kW. Variants: R260BH21OTRGN, R260BH21OTRON.
• Road trailer (diesel) - engine: 20 hp / 14.9 kW. Variants: R260DK20OTRGN, R260DK20OTRON.
• Tractor (three-point linkage) - longitudinal or transverse mounting - recommended power: ≥ 35 hp / 25.7 kW. Variants: R260TPLN (longitudinal), R260TPTN (transverse).
• Tracks - petrol: 21 hp / 15.5 kW (R260BH21CN). Tracks - diesel: 20 hp / 14.9 kW (R260DK20CN).

Cutting system and basic equipment

• ROTOR: blades + hammers system, suitable for shredding wood including damp and fibrous material typical of bio-shredders.
• High-quality tools: sharpenable hardened-steel blades and reversible hardened-steel hammers.
• Fixed removable refining screen: ensures uniform small chip size.
• Hydraulic feeding roller with adjustable speed and rotation direction: improves feed efficiency.
• Steel feeding conveyor with adjustable speed and rotation direction: facilitates loading and increases throughput.
• Rotary ejection pipe with adjustable discharge distance: directs chips away from the operator for improved safety.
• Large, easy-to-use hopper: eases loading and supports high hourly output.
• Lubrication system for bearings: simplifies and speeds up maintenance.
• OBS - On Board System: automatic control of feed (Nostress) and monitoring of machine parameters.

Accessories

• Ejection pipe extension.

Notes

*Input material - data depend on material type and working conditions.

Technical specifications

• Model name: R260
• Hourly capacity: 10 - 14 m³/h*
• Throat opening (mm): 230 x 130
• Maximum wood diameter (Ø max): 130 mm
• Number of blades: 2
• Number of hammers: 20
• Available configurations: Road trailer (petrol/diesel), Tractor (longitudinal/transverse), Tracks
• Typical engine options: petrol 21 hp / 15.5 kW (e.g. Honda GX630), diesel 20 hp / 14.9 kW (e.g. Kubota D722), tractor-linked machines require ≥ 35 hp / 25.7 kW
• Cutting system: rotor with blades + hammers and removable refining screen
• Feeding: hydraulic feeding roller and steel conveyor with adjustable speed and rotation direction
• Safety: rotary ejection pipe with adjustable discharge distance
