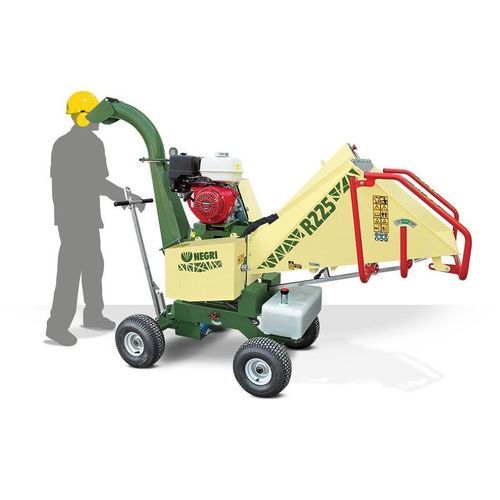

Towed wood chipper R225 series

hydraulic supply

Overview
R225 is a compact shredder-chipper designed to process wood, including damp and fibrous material, to reduce volume for transport or produce compost and woodchip.

Main data

• Hourly capacity: 6 - 7 m³/h*
• Throat (feed) opening: 160 x 90 mm
• Maximum wood diameter: Ø 90 mm*
• Cutting system: 2 blades + 8 hammers

Versions / Power

• Manual handling on 4 wheels — Fuel: Petrol — Power: 13 hp / 9.6 kW — Engine: Honda GX390 — Available versions: R225BHHP13, R225BHHP13AEN
• Road trailer — Fuel: Petrol — Power: 13 hp / 9.6 kW — Engine: Honda GX390 — Available versions: R225BHHP13O, R225BHHP13AEON
• Tractor (three-point linkage / transverse machine) — Required power: ≥ 15 hp / 11 kW — Available versions: R225T, R225TN

Basic equipment

• ROTOR with blades + hammers — suitable for shredding wood, including damp and fibrous material
• Sharpenable blades (hardened steel) and reversible mobile hammers (hardened steel)
• Hydraulic feeding roller with adjustable speed and rotation direction — improves feeding of vegetal material
• Rotary discharge pipe with adjustable throw — enhances operator safety by directing discharge away from operator
• Large, ergonomic hopper — facilitates feeding and supports high throughput
• Bearings lubrication system — simplifies and speeds up maintenance

Accessories

• Ejection pipe extension
• Refining screen kit — fixed removable refining screen

Notes

• * Input material — performance data depend on material type and working conditions.

Technical specifications

• Hourly capacity: 6 - 7 m³/h*
• Throat opening: 160 x 90 mm
• Maximum wood diameter: Ø 90 mm*
• Number of blades: 2
• Number of hammers: 8
• Cutting system: Blades + Hammers rotor
• Available power options: 13 hp / 9.6 kW (petrol) and ≥15 hp / 11 kW (tractor version)
• Engine example: Honda GX390 (for petrol versions)
• Hydraulic feeding roller with adjustable speed and rotation
• Rotary adjustable ejection pipe
• Large hopper
• Bearings lubrication system
