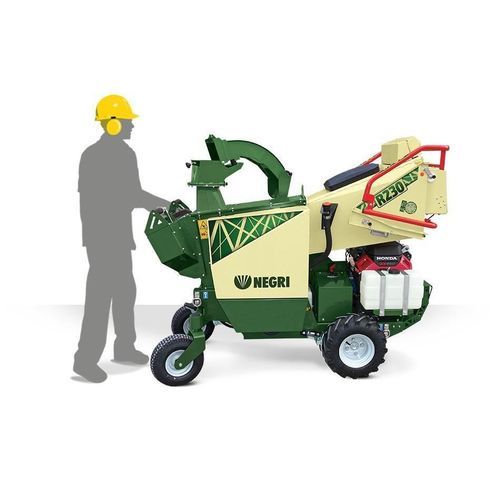

Self-propelled wood chipper R230BH21SN

hydraulic supply

Overview
Mobile petrol-powered wood chipper designed for shredding small and large pruning from green areas. The rotor combines blades and hammers to process wood, including damp and fibrous material, producing uniform chips suitable for composting or mulch and reducing volume for transport.

Main features

• Hourly capacity: 7 - 9 m³/h*
• Throat opening: 230 x 110 mm
• Maximum branch diameter: Ø 110 mm
• Cutting tools: 2 blades
• Hammers: 16 hammers

Version & Power

• Version: Self-propelled trailer
• Power source: Petrol
• Engine: Honda GX630 — 21 hp / 15.5 kW
• Available variant: R230BH21SN

Equipment and features

• ROTOR (blades + hammers): suitable for shredding wood, including damp and fibrous material.
• Sharpenable blades (hardened steel) and reversible mobile hammers (hardened steel) for prolonged service life.
• Fixed removable refining screen to guarantee consistent, small chip dimensions.
• Hydraulic feeding roller with adjustable speed and rotation direction to optimise feed of green waste.
• Folding, rotary ejection pipe with adjustable discharge distance for safe and flexible chip placement.
• Folding, large hopper to facilitate loading and transport and to enable high throughput.
• Grease lubrication system for bearings to simplify and speed up maintenance.
• Ergonomic console centralising machine controls.
• OBS — On Board System: automatic feed control (Nostress) and machine parameter monitoring.
• Self-propelled trailer for faster, safer movements and easy loading/unloading.
• Hydraulic differential (Gentle Lawn Steering): controls wheel skidding when cornering.

Notes
* Input material and working conditions affect throughput data.

Technical specifications

• Hourly capacity: 7 - 9 m³/h*
• Throat opening: 230 x 110 mm
• Maximum branch diameter: Ø 110 mm
• Blades: 2
• Hammers: 16
• Engine (example variant R230BH21SN): Honda GX630 — 21 hp / 15.5 kW (petrol)
• Version example: Self-propelled trailer
• Refining screen: fixed removable
• Feeding: hydraulic roller with adjustable speed and rotation direction
