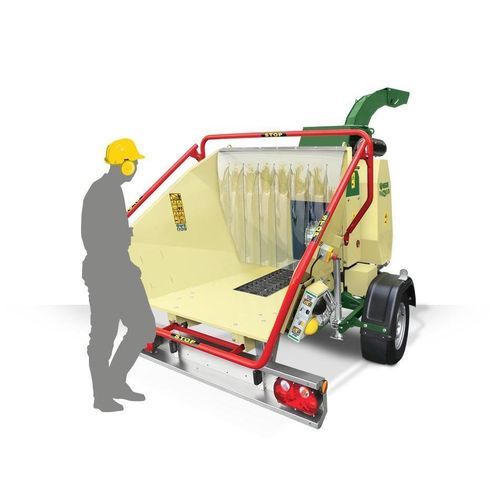

Towed wood chipper R280-M

diesel enginehydraulic supply

Product family Shredders - Chippers

Overview Suitable for shredding both small and large pruning from green areas, reducing volume for easier transport and to obtain excellent compost or wood chips.

Main performance data

• Hourly capacity: 13 - 18 m³/h*
• Throat opening: 270 x 150 mm
• Max wood diameter: Ø 150 mm
• Number of hammers: 24

Versions & Power Sources

• Road trailer (petrol): hp/kW 25 / 18.4 — engine option: Honda IGX800 — available variants: R280BH25OTRGN-M, R280BH25OTRON-M
• Road trailer (petrol): hp/kW 40 / 29.9 — engine option: Briggs & Stratton Vanguard EFI40 — available variants: R280BB40OTRGN-M, R280BB40OTRON-M
• Road trailer (diesel): hp/kW 26.5 / 19.5 — engine option: Kubota D1105 — available variants: R280DK26OTRGN-M, R280DK26OTRON-M
• Tractor (towed by tractor): required power ≥ 40 / 29.5 hp/kW — variant: R280TN-M
• Tracks (petrol): hp/kW 25 / 18.4 — engine option: Honda IGX800 — variant: R280BH25CN-M
• Tracks (petrol): hp/kW 40 / 29.9 — engine option: Briggs & Stratton Vanguard EFI40 — variant: R280BB40CN-M
• Tracks (diesel): hp/kW 26.5 / 19.5 — engine option: Kubota D1105 — variant: R280DK26CN-M

Basic equipment and features

• ROTOR | Hammers: suitable for shredding wood containing small stones/nails and soil (typical of bio-shredders)
• High-quality mobile reversible hammers (hardened steel)
• Fixed removable refining screen to guarantee small chip dimensions
• Hydraulic feeding roller with adjustable speed and rotation direction for efficient vegetable waste feed
• Feeding conveyor belt in steel with adjustable speed and rotation direction to reach high hourly output
• Rotary ejection pipe with adjustable discharge distance for operator safety
• Large and handy hopper to facilitate feeding
• Lubrication system for bearings to facilitate and speed up maintenance
• OBS - On Board System: automatic control of vegetable waste feed (Nostress) and machine functional parameters

Accessories

• Ejection pipe extension

Notes * Input material - Data depending on the kind of material and working conditions.

Technical specifications

• Model: R280-M
• Hourly capacity: 13 - 18 m³/h*
• Throat opening: 270 x 150 mm
• Max cutting Ø: 150 mm
• Cutting tools: 24 hammers (mobile reversible, hardened steel)
• Refining: fixed removable refining screen
• Feeding: hydraulic roller and steel conveyor with adjustable speed and rotation direction
• Ejection: rotary ejection pipe with adjustable discharge
• Hopper: large and handy
• Maintenance: lubrication system for bearings
• Control: OBS (On Board System) automatic feed and machine parameter control
• Available configurations: road trailer, tractor-towed, tracked
• Engines: petrol and diesel options (Honda IGX800, Briggs & Stratton Vanguard EFI40, Kubota D1105)
