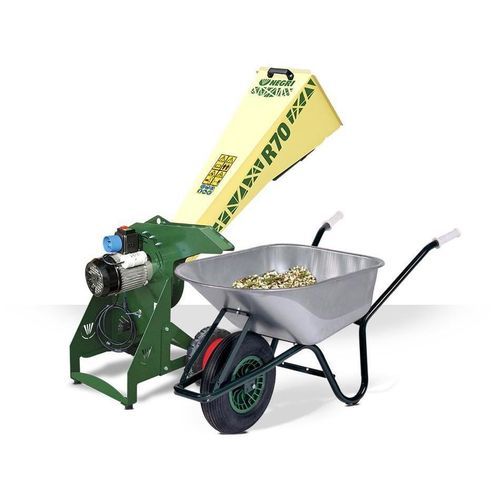

Wheeled wood chipper R70 series

electric

Product family
Shredders - Chippers

Overview
The R70 is a compact chipper designed to reduce small and medium-sized prunings from parks, gardens and orchards. It decreases volume for easier transport and produces uniform chips suitable for composting or woodchip use.

Main features

• Hourly capacity: 2 - 3 m³/h*
• Throat opening: 100 x 115 mm
• Maximum wood diameter (Ø max.): 50 mm
• Blades: 1
• Hammers: 6 (reversible)
• Counter-blade: 1 (reversible)

Versions / Power options

• Manual handling — Electric version: 2.5 hp / 1.8 kW (220 V - 50 Hz) — variant: R70EHP25
• Manual handling — Petrol version: 5.5 hp / 4 kW (Honda GP160) — variant: R70BHHP55GP

Basic equipment & tooling

• DISC | Blades + Counter-blade — for producing wood chips typical of chippers
• Sharpenable blade (hardened steel) for extended service life
• Reversible hammers (hardened steel)
• Reversible counter-blade (hardened steel) to improve cutting action
• Refining screws to ensure small, uniform chip size
• Low-height ejection to allow discharge into containers
• Safety device on the hopper to protect the operator from moving cutting tools
• Hopper with handle to assist machine displacement
• 2 large wheels for easy transport

Brochure / Documentation
Brochure available in PDF format for the R70 model.

Multimedia
Product video available (YouTube).

Notes
* Input material - Data depending on the kind of material and working conditions.

Technical specifications

• Model: R70
• Hourly capacity: 2 - 3 m³/h*
• Throat opening: 100 x 115 mm
• Ø max. wood: 50 mm
• Number of blades: 1
• Number of hammers: 6 (reversible)
• Counter-blade: 1 (reversible)
• Electric power (variant R70EHP25): 2.5 hp / 1.8 kW — 220 V - 50 Hz
• Petrol power (variant R70BHHP55GP): 5.5 hp / 4 kW — Honda GP160
• Equipment highlights: DISC (Blades + Counter-blade), sharpenable/hardened steel tools, refining screws, low-height ejection, hopper safety device, handle for displacement, 2 large wheels
