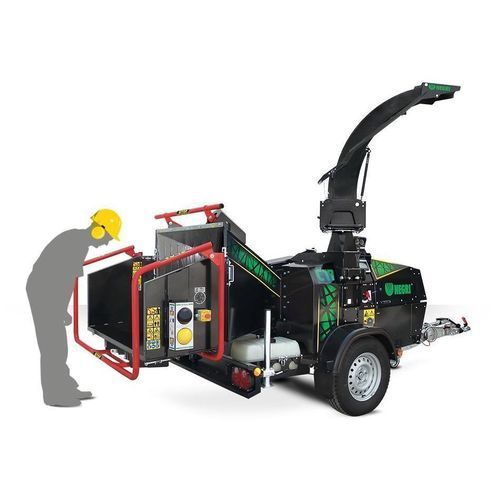

Towed wood chipper C17 series

diesel enginehydraulic supply

Overview
Designed to shred both small and large pruning material and green waste, the C17 reduces volume for easier transport and produces material suitable for composting or high-quality wood chips for biomass.

Versions

• Road trailer
• Tracks (crawler)
• Tractor (three-point linkage / longitudinal machine)

Power options & engines

• Road trailer - Diesel: 25 hp / 18.5 kW (Kubota V1505)
• Road trailer - Petrol: 40 hp / 29.9 kW (Briggs & Stratton Vanguard EFI40)
• Tracks - Diesel: 25 hp / 18.5 kW (Kubota V1505)
• Tracks - Petrol: 40 hp / 29.9 kW (Briggs & Stratton Vanguard EFI40)
• Tractor: ≥ 40 hp / 29.5 kW (three-point linkage / longitudinal machine)

Available cutting system / model variants

• C17DK26OTRGN
• C17DK26OTRON
• C17BB40OTRGN
• C17BB40OTRON
• C17DK26CN
• C17BB40CN
• C17TPN

Basic equipment

• DISC configuration: Blades + counter-blade — suitable for shredding medium to large material to obtain wood chips (typical chipper output)
• High-quality tools: adjustable, sharpenable blades in hardened steel
• Fixed counter-blade (hardened steel) to improve cutting performance and blade life
• Hydraulic feeding rollers with adjustable speed and rotation direction for efficient intake of green waste
• Folding, rotary ejection pipe with adjustable discharge distance to facilitate transport and protect the operator
• Folding, large hopper to ease feeding and achieve high hourly output
• Bearings lubrication system to simplify and speed up maintenance
• OBS - On Board System: automatic control of feed (Nostress) and machine functional parameters

Multimedia

• Product video available demonstrating the machine and its operation

Technical specifications

• Hourly capacity: 3.5 t/h (dependent on input material and working conditions)
• Throat opening: 236 x 170 mm
• Maximum wood diameter: Ø 170 mm
• Number of blades: 2
• Number of hammers: - (not applicable)
• Counter-blade: 1 (fixed, hardened steel)
• Power (examples by version): Diesel 25 hp / 18.5 kW (Kubota V1505); Petrol 40 hp / 29.9 kW (Briggs & Stratton Vanguard EFI40); Tractor version requires ≥ 40 hp / 29.5 kW
• Cutting system / model codes: C17DK26OTRGN, C17DK26OTRON, C17BB40OTRGN, C17BB40OTRON, C17DK26CN, C17BB40CN, C17TPN
