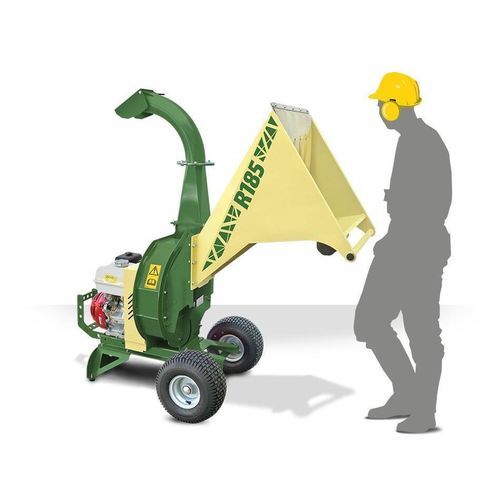

Towed wood chipper R185 series

electrichydraulic supply

Product family
Wood chipper-shredders for green waste and pruning. Designed to reduce volume for transport, produce wood chips for compost or biomass and process small to medium branches from parks, orchards and roadside maintenance.

Product overview

• Hourly capacity: 6 - 7 m³/h*
• Throat opening: 160 x 90 (RI) / 160 x 150 mm
• Maximum wood diameter: Ø 90 mm
• Blades: 2
• Hammers: 10
• Counter-blade: 1

Versions and power sources
Manual handling
Power source options:

• Electric: 15 hp / 11 kW — 380 V - 50 Hz (examples: R185EHP15, R185EHP15RI)
• Petrol: 13 hp / 9.6 kW — engine example Honda GX390 (examples: R185BHHP13, R185BHHP13RI, R185BHHP13AERIN)

Tractor
Three-point linkage for tractor, longitudinal machine. Recommended tractor power ≥ 15 hp / 11 kW (examples: R185T, R185TRI, R185TRIN).

Basic equipment and tools

• DISC | Blades + Counter-blade — for producing wood chips from medium/large material
• Sharpenable hardened-steel blades; mobile reversible hardened-steel hammers
• Adjustable counter-blade — improves cut quality and extends blade life
• Mobile refining screen — ensures uniform small chip size
• Rotary ejection pipe with adjustable discharge distance — reduces risk of accidental ejection toward operator
• Lubrication system for bearings — simplifies and speeds maintenance
• (RI versions only) Hydraulic feeding roller with adjustable speed and rotation direction — improves feeding of green waste

Accessories

• Ejection pipe extension

Notes
* Input material — performance depends on material type and working conditions.

Technical specifications

• Model: R185
• Hourly capacity: 6 - 7 m³/h*
• Throat opening: 160 x 90 (RI) / 160 x 150 mm
• Maximum wood diameter: Ø 90 mm
• Blades: 2
• Hammers: 10
• Counter-blade: 1
• Electric option: 15 hp / 11 kW — 380 V - 50 Hz
• Petrol option: 13 hp / 9.6 kW — e.g. Honda GX390
• Tractor version: three-point linkage, recommended ≥ 15 hp / 11 kW
• Tooling: sharpenable hardened-steel blades; mobile reversible hardened-steel hammers
• Features: adjustable counter-blade; mobile refining screen; rotary adjustable ejection pipe; lubrication system for bearings; hydraulic feeding roller on RI versions
