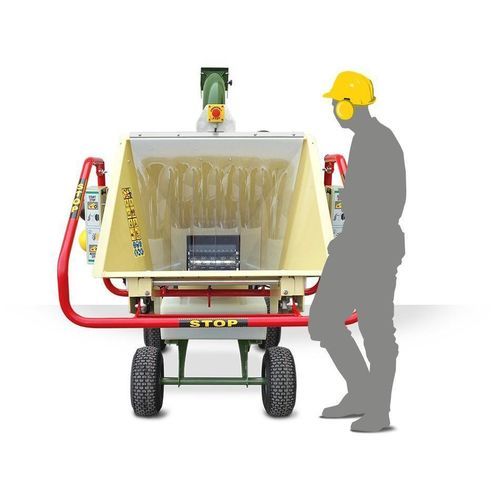

Towed wood chipper R240 series

diesel enginehydraulic supply

Product overview
R240 is a mobile wood chipper designed for shredding small and large prunings from green areas, parks and orchards. It reduces volume for easier transport and produces uniform chips suitable for composting or biomass use.

Main technical data

• Hourly capacity: 7 - 10 m³/h*
• Throat opening: 286 x 90 mm
• Ø max. wood: 90 mm
• Blades: 4
• Hammers: 16

Versions

• Road trailer: Diesel (20 / 14.9 hp/kW) – Kubota D722 (example variant: R240DKHP20ON); Petrol (21 / 15.5 hp/kW) – Honda GX630 (example variant: R240BHHP21ON).
• Tracks: Diesel (20 / 14.9 hp/kW) – Kubota D722 (example variant: R240DKHP20CN); Petrol (21 / 15.5 hp/kW) – Honda GX630 (example variant: R240BHHP21CN).
• Tractor: three-point linkage for tractor / transverse machine: ≥ 25 / 18.4 hp/kW (example variant: R240TN).

Standard equipment

• ROTOR | Blades + Hammers – suitable for shredding wood, including damp and fibrous material common in green waste.
• High-quality tools: Sharpenable blades (hardened steel); reversible mobile hammers (hardened steel) for extended service life.
• Fixed removable refining screen to guarantee small, uniform chip dimensions.
• Hydraulic feeding roller with adjustable speed and reversible rotation to ensure efficient intake of branches and prunings.
• Rotary ejection pipe with adjustable discharge distance to direct chips and improve operator safety.
• Large, ergonomic hopper to ease feeding and reach high hourly output.
• Lubrication system for bearings to simplify and speed up maintenance operations.
• OBS - On Board System: automatic feed control (NoStress) and monitoring of key machine parameters.

Accessories

• Ejection pipe extension.

Notes

• Input material performance depends on material type, moisture content and working conditions; values are indicative.

Technical specifications

• Model: R240
• Hourly capacity: 7 - 10 m³/h*
• Throat opening: 286 x 90 mm
• Maximum wood diameter: 90 mm
• Number of blades: 4
• Number of hammers: 16
• Power options: Road trailer / Tracks – Diesel 20 hp (14.9 kW) / Petrol 21 hp (15.5 kW); Tractor version – ≥ 25 hp (18.4 kW)
• Key equipment: rotor with blades and hammers, removable refining screen, hydraulic feeding roller, rotary ejection pipe, lubrication system, OBS (On Board System)
