Water tank AQ20001V-B

verticalUV-resistantstorage

Overview

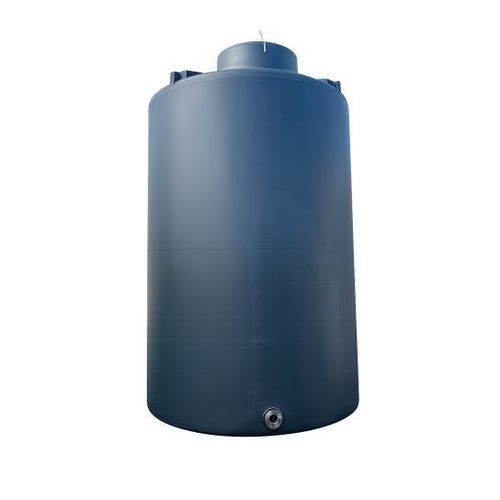

Water storage tank 20 m3 (20,000 L) from the BASIC range, 100% manufactured in France. Constructed in opaque HDPE with UV15 protection (approximately twice the UV resistance of standard UV8 polyethylene), improving UV and impact resistance. Product warranty: 5 years; spare parts: 1 year.

Ideal tank for water storage
Suitable as a buffer tank for crop protection sprayers, for rainwater harvesting, irrigation and drinking water for livestock on farms. Enables savings on water and consumables (pesticides, adjuvants) through recovery and storage.

Advantages

• Self-cleaning capability via manhole for on-site maintenance.
• Easy handling and installation without a crane thanks to integrated lifting rings.
• Opaque HDPE prevents algae formation.
• Pre-mounted tank penetration for enhanced sealing.

Product highlights

• Manhole and cover Ø455 mm.
• Stainless steel nipple.
• Professionally fitted tank penetration.
• Stainless steel valve DN80.
• Float optional.
• Warranty: 5 years (product); parts: 1 year.

Instructions for use
Place the 20 m3 tank on a concrete surface compliant with the technical specifications. Verify before delivery the required position and dimensions of the tank penetration.

Technical data
Height (m) : 3800
Weight (kg) : 400
Diameter (m) : 2825
Key : C
Capacity (L) : 20000

Characteristics / technical specifications

• Nominal capacity: 20,000 L.
• Material: opaque HDPE (limits algae formation).
• UV protection: UV15 (increased resistance to UV and ageing).
• Height (value provided): 3800 (unit indicated on technical sheet).
• Diameter (value provided): 2825 (unit indicated on technical sheet).
• Weight: 400 kg.
• Supplied/optional elements: manhole Ø455 mm, cover, stainless steel nipple, pre-mounted tank penetration, stainless steel valve DN80, float optional.
• Handling: integrated lifting rings allow installation without a crane.
• Warranty: 5 years (product); parts: 1 year.
