Water tank AQ10200V

overheadverticalpolyethylene

Overview

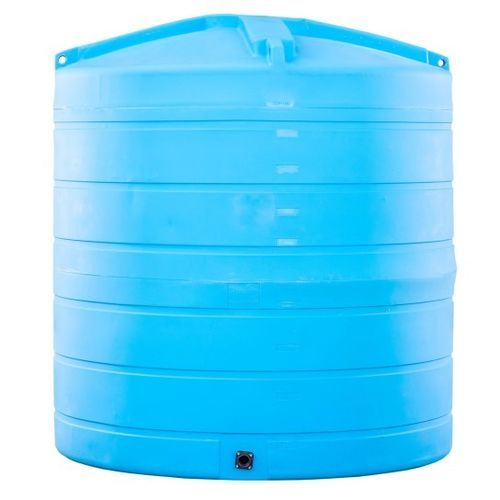

Vertical water storage tank designed for approximately 10 000 L. Model: AQUA 10000. Supplied with female PVC DN50 valve / nipple and PTFE tape, professionally fitted wall fitting (tank penetration) and manhole Ø 462 mm.

Advantages

• High-definition anti-UV treatment (UV15) for extended service life and better stored water quality.
• Fully opaque polyethylene body to prevent algae growth.
• Light-colored exterior to help keep stored water cooler and ribbed walls for improved rigidity.
• Lid with vent.
• Integrated lifting eyes allow handling and installation when empty without crane.
• Wall fitting installed by professionals to ensure optimal sealing.
• Float switch and custom drain diameters available as options.

Included delivery

• Valve included (female PVC DN50 / nipple and PTFE tape).
• Wall fitting installed in workshop.
• Manhole Ø 462 mm for cleaning and access.

Additional information
- To be installed on a concrete surface according to project specifications.
- Suitable for liquids with a density not exceeding 1 kg/dm³.
- Limited footprint (diameter between 1.8 and 2.5 m); compact version suitable for confined spaces.
- Optimized sealing; delivered ready to use.

Manufacturing & warranty
Made in France. Tank warranty: 10 years. Parts warranty: 1 year.

Characteristics / Technical specifications

• Model: AQUA 10000
• Product reference: AQ10200V
• Capacity: 10 000 L
• Height: 2.700 m
• Diameter: 2.400 m
• Weight: 220 kg
• Key: A
• Manhole: Ø 462 mm
• Material: Opaque polyethylene, anti-UV treated (UV15)
• Pre-mounted tank flange: DN80 including reducer and DN50 ball valve (plastic)
• Options: float switch, custom drain diameter (on request)
