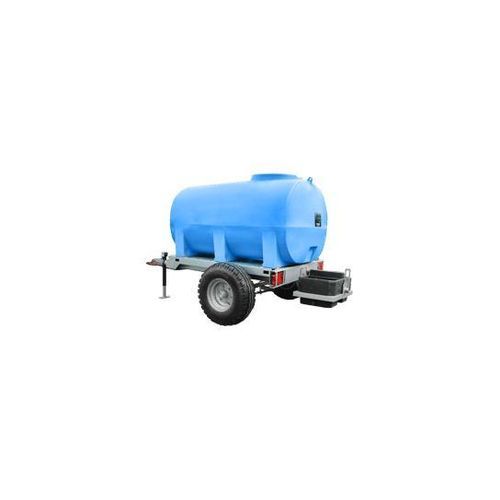

Single-axle water bowser CHAQ4001H

chassis-mounted

Overview
Trailer chassis fitted with a 4000 L water tank, model CHAQ4001H. Designed for agricultural water transport and distribution. Note on road approval: variants exist both with road homologation and without; verify the ordered reference for road use.

Main features

• Removable support leg
• Hot-dip galvanized chassis
• Quick and secure tank fastening by pins
• Rear light protection (except on non-homologated versions)
• Hydraulic braking

Dimensions and weights
Overall length: 3.68 m
Overall width: 2.10 m
Chassis height (empty): 0.65 m
GVWR: 5000 kg
Chassis empty weight: 760 kg
Total unit weight (feature): 880 kg

Technical components
Service brake: mechanical
Drawbar type: retractable drawbar
Wheels/tyres: 10.0/75-15.3 new
Tank flange DN50 pre‑fitted with DN50 ball valve
Max. transport fluid density: 1.0 kg/L
Baffles and indentations to reduce liquid surge

FAQ excerpts

• UV and ageing resistance: Duraplas tanks feature UV15 protection, approximately twice the resistance of standard UV8 polyethylenes, improving impact and UV resistance.
• Installing a pump in a rainwater tank: you can fit a submersible pump (placed at the bottom) or a surface pump (with suction/discharge connections); choice depends on the application.
• Ball-baffles system benefits: reduces liquid movement, improves transport stability and braking performance; Duraplas ball-baffles are made of ultra-resistant polypropylene and reduce vehicle wear.

Technical specifications

• Capacity: 4000 L
• Net weight (chassis + fittings as indicated): 880 kg
• Chassis empty weight (as specified): 760 kg
• Key: C
• GVWR: 5000 kg
• Overall length: 3.68 m
• Overall width: 2.10 m
• Chassis empty height: 0.65 m
• Service brake: mechanical
• Drawbar: retractable
• Wheels/tyres: 10.0/75-15.3 new
• Product reference: CHAQ4001H
