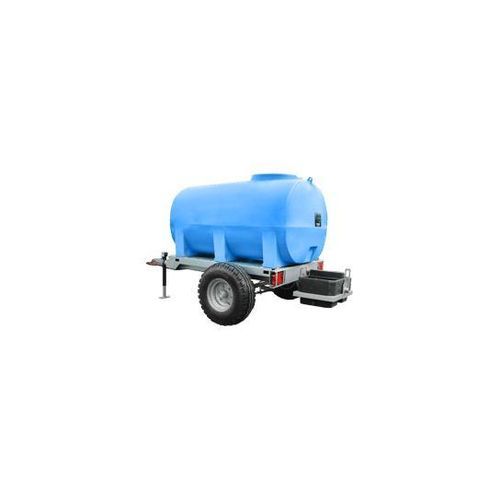

Single-axle water bowser CHAQ2501HOMOL

chassis-mounted

Description
Trailer chassis equipped with a 2500 L water tank for on‑site watering. Road‑approved for transport on public roads.

Features

• Retractable drawbar to prevent injuries to animals when drinking from the trough
• Removable support leg
• Hot‑dip galvanized chassis
• Quick and secure pin fastenings
• Rear light protection
• Service brake: hydraulic
• Drawbar type: retractable drawbar
• Wheels/tyres: 10.0/75-15.3 (new)
• Optional front/rear troughs: troughs pivot to adapt to sloping terrain

Dimensions & data
Overall length: 3.68 m
Overall width: 2.10 m
Overall height (Height (m)): 2.000 m
Chassis empty height: 0.65 m
Depth (m): 3.150 m
GVW: 5000 kg
Chassis tare weight: 760 kg
Weight (kg) (shown on data sheet): 860.000 kg
Capacity (L): 2500 L

Warranty
5-year warranty.

Technical characteristics / specifications

• Capacity: 2500 L
• Overall length: 3.68 m
• Overall width: 2.10 m
• Height (m): 2.000 m
• Chassis empty height: 0.65 m
• Depth (m): 3.150 m
• GVW: 5000 kg
• Chassis tare weight: 760 kg
• Weight (data sheet): 860 kg
• Service brake: hydraulic
• Drawbar type: retractable drawbar
• Wheels/tyres: 10.0/75-15.3 (new)
• Fastening: quick and secure by pins
• Rear light protection
• Key: A
