Water tank AQ2501H-B

polyethyleneUV-resistanttransport

Presentation

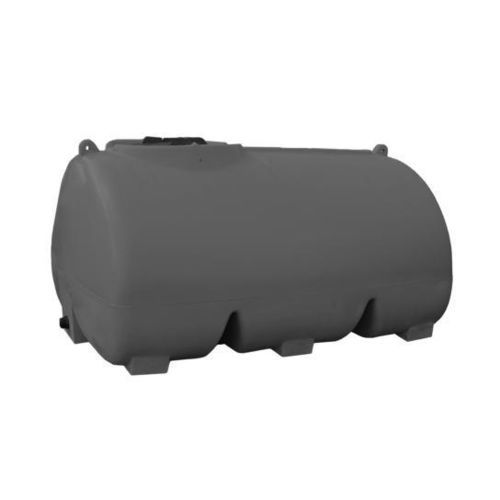

DURATANK AQ2501H-B
2500 litre water transport tank designed for agricultural and field use.

General information
Capacity: 2500 L. Manufactured in France. Tank warranty: 3 years; accessories warranty: 1 year.

Delivered items and usage features

• Supplied with DN50 PVC female flange and PTFE tape
• Professional drain fitted
• Manhole Ø 455 mm (vented cover) for internal cleaning
• Lifting eyes for relocation and empty installation (no crane required)
• Bulkhead passthrough fitted (valve not pre-mounted to protect the product during transport)
• High-definition UV treatment (UV15 — enhanced protection versus standard polyethylene)
• Anti-slosh indentations to reduce tractor wear
• Axle mounting kit available as option (recommended from 2000 L)

Product advantage (anti-slosh option)
The tank can be equipped with the Ball Baffle anti-slosh system (optional). Benefits:

• Reduces liquid movement and improves stability during transport
• Helps reduce vehicle wear
• Ball baffles made of ultra-resistant polypropylene for extended durability

Characteristics / technical specifications

• Article number: AQ2501H-B
• Series: DURATANK
• Model: BASIC
• Material: Polyethylene, UV-treated, light-blocking
• Manhole diameter: Ø 455 mm
• Tank flange: DN50 pre-mounted including DN50 ball valve
• Max. liquid density: 1.2 kg/L
• Lifting/handling: 2 eyes (only when empty)
• Slosh reduction: body indentations; optional Ball Baffles
• Color: Black (RAL 9005)
• Empty weight: 120 kg (approx.)
• Volume: 2500 L
• Dimensions (HxWxD): 1.100 m x 1.540 m x 2.100 m
• Warranty: 3 years (tank) / 1 year (accessories)
