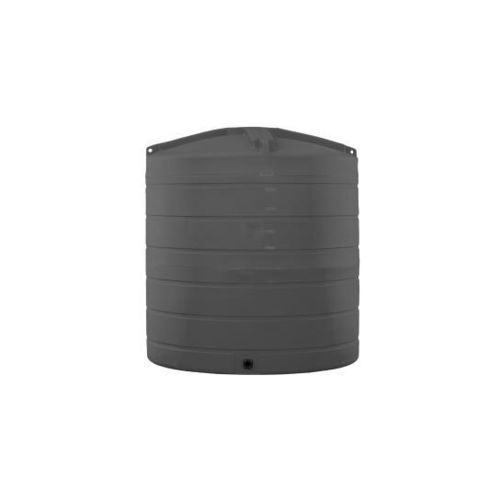

Rainwater tank AQ10200V-B

waterverticalpolyethylene

Overview
Rainwater harvesting and storage tank, nominal capacity 10,000 L. Supplied with PVC female valve DN50 / nipple and PTFE tape, factory-mounted bulkhead fitting and manhole Ø 462 for access.

Main features

• Above-ground Basic range tank of approximately 10,000 L.
• Opaque polyethylene construction to prevent algae formation.
• High-definition UV treatment for improved service life and stored water quality (UV15 protection).
• Vented cover.
• Drain diameter available as an option.
• Float switch available as an option.
• Cleaning access via manhole for easy maintenance.
• Lifting rings for handling and installation empty without crane.
• Ribbed design for increased rigidity.
• Bulkhead fitting mounted by professionals to ensure optimal sealing.

Benefits

• To be installed on a concrete base according to project specifications.
• Suitable for all liquids with density up to 1 kg/dm³.
• Confirm bulkhead position and size prior to delivery.

Technical data
Height (m) : 2.700
Weight (kg) : 220.000
Diameter (m) : 2.400
Key : A
Capacity (L) : 10,000

Characteristics / Technical specifications

• Product reference: AQ10200V-B
• Material: opaque polyethylene, UV-treated (UV15).
• Nominal volume: 10,000 L.
• Height: 2.700 m.
• Diameter: 2.400 m.
• Weight: 220 kg.
• Valve supplied: PVC female DN50 / nipple and PTFE tape included.
• Manhole: Ø 462 (cleaning access).
• Bulkhead fitting: factory-mounted by professionals (optimal sealing).
• Options: selectable drain diameter, float switch.
• Warranty: tank 5 years, parts 1 year.
• Made in France.
