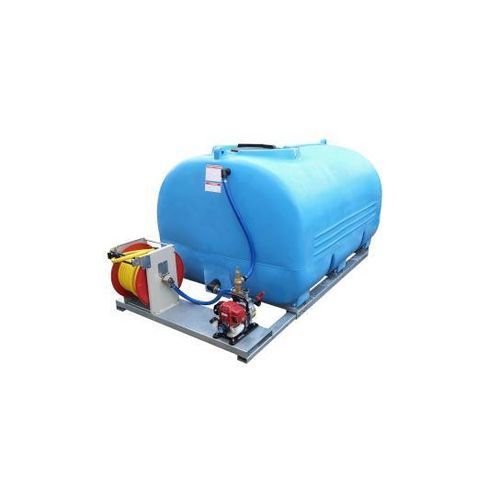

Chassis-mounted water bowser GPEAR4001-130

Presentation
4000-litre water tank mounted on a galvanized chassis with Honda motor-pump. Suited for site watering and municipal green-space maintenance.

Main components

• Galvanized chassis
• PEHD tank (food-grade polyethylene, UV-protected)
• Suction filter
• Overpressure valve with return to tank
• 6 m hose with nozzle (manual reel; 20 m automatic reel optional)

Pump and performance

• Max flow: 130 L/min (7.8 m3/h)
• Engine: Honda 4-stroke GX 31 cc
• Pump model: WX10 (Honda)
• Autonomy: approx. 1.2 h
• Working pressure: 3.5 bar
• Self-priming pump
• Maximum particle size: 5.70 mm
• Connection diameter: 1" (DN25)

Advantages
Irrigation unit designed for construction-site watering and public green areas. Recommended for municipal landscaping. Anti-slosh Ball Baffle system available for safer transport and operation (unique in Europe).

Technical specifications

• Height (m): 1.400
• Width (m): 2.000
• Depth (m): 3.000
• Weight (kg): 290.000
• Key: A
• Capacity (L): 4000
• Product reference: GPEAR4001-130
• Tank color: light blue (RAL 5012)
• Tank material: food-grade polyethylene, UV15 protection
• Chassis: galvanized steel
• Warranty: 5 years (tank), 1 year (accessories)
• Optional: 20 m hose reel, BallBaffle anti-slosh system
