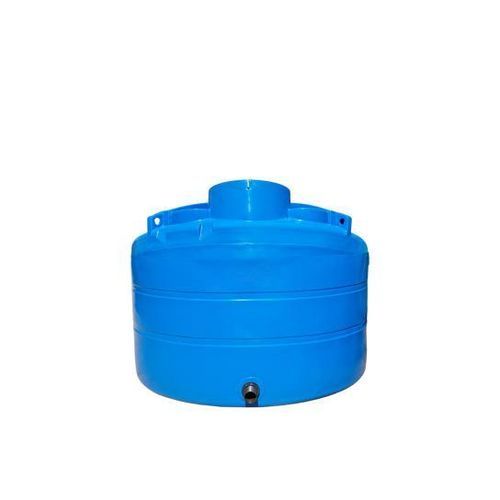

Water tank AQ4001V

overheadverticalUV-resistant

Overview
Above-ground vertical water tank, capacity 4000 L, PREMIUM range. Supplied with female PVC valve DN50 with PTFE tape, professional drain fitted and wall-penetration installed. Manhole Ø 462 mm. Reported dimensions: Ø 1890 x 2280 mm. 10-year warranty on the tank. Fast delivery available.

Instructions

• Install on a suitably reinforced concrete base according to technical requirements.
• Suitable for liquids with density up to 1 kg/dm³.
• Confirm placement and wall-penetration size before delivery.

Use / installation

• For pump installation: compatible with a submersible pump (placed at the bottom) or a surface pump (connected to suction/discharge lines).
• Valve supplied: female PVC DN50 (fitted with PTFE tape).

Additional product information and FAQ
Enhanced UV protection (e.g. UV15) improves resistance to aging and impacts compared with standard polyethylenes. Options and accessories can be selected to adapt the tank for rainwater harvesting, irrigation or process water storage.

Characteristics / Technical specifications

• Reference: AQ4001V
• Volume: 4000 L
• Height: 1.54 m
• Diameter: 2.11 m
• Reported dimensions: Ø 1890 x 2280 mm
• Empty weight: 120 kg
• Key: 5012
• Manhole: Ø 462 mm
• Delivered equipment: wall-penetration mounted, female PVC valve DN50 with PTFE tape, professional drain fitted
• Liquid compatibility: up to density 1 kg/dm³
• Range: PREMIUM
